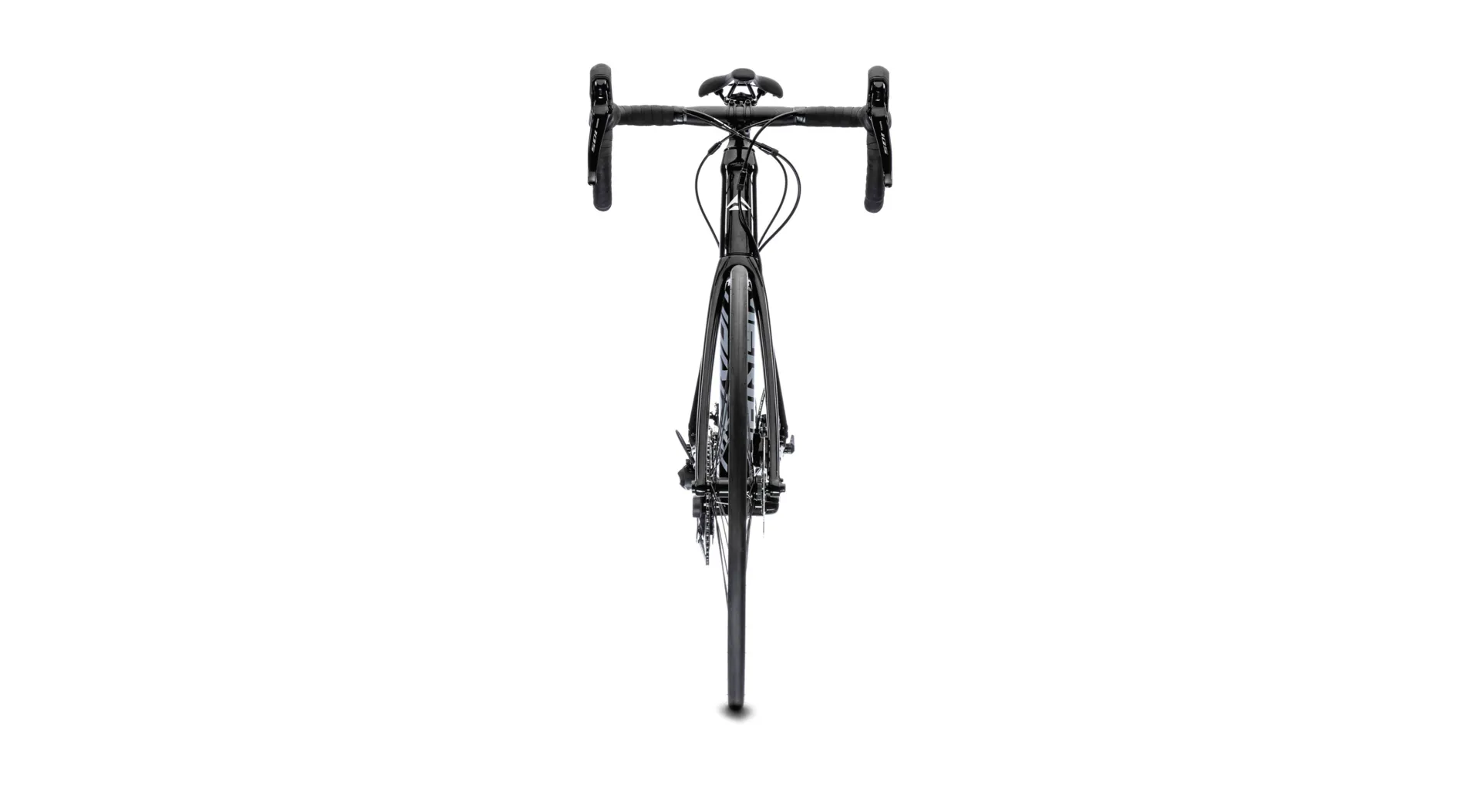

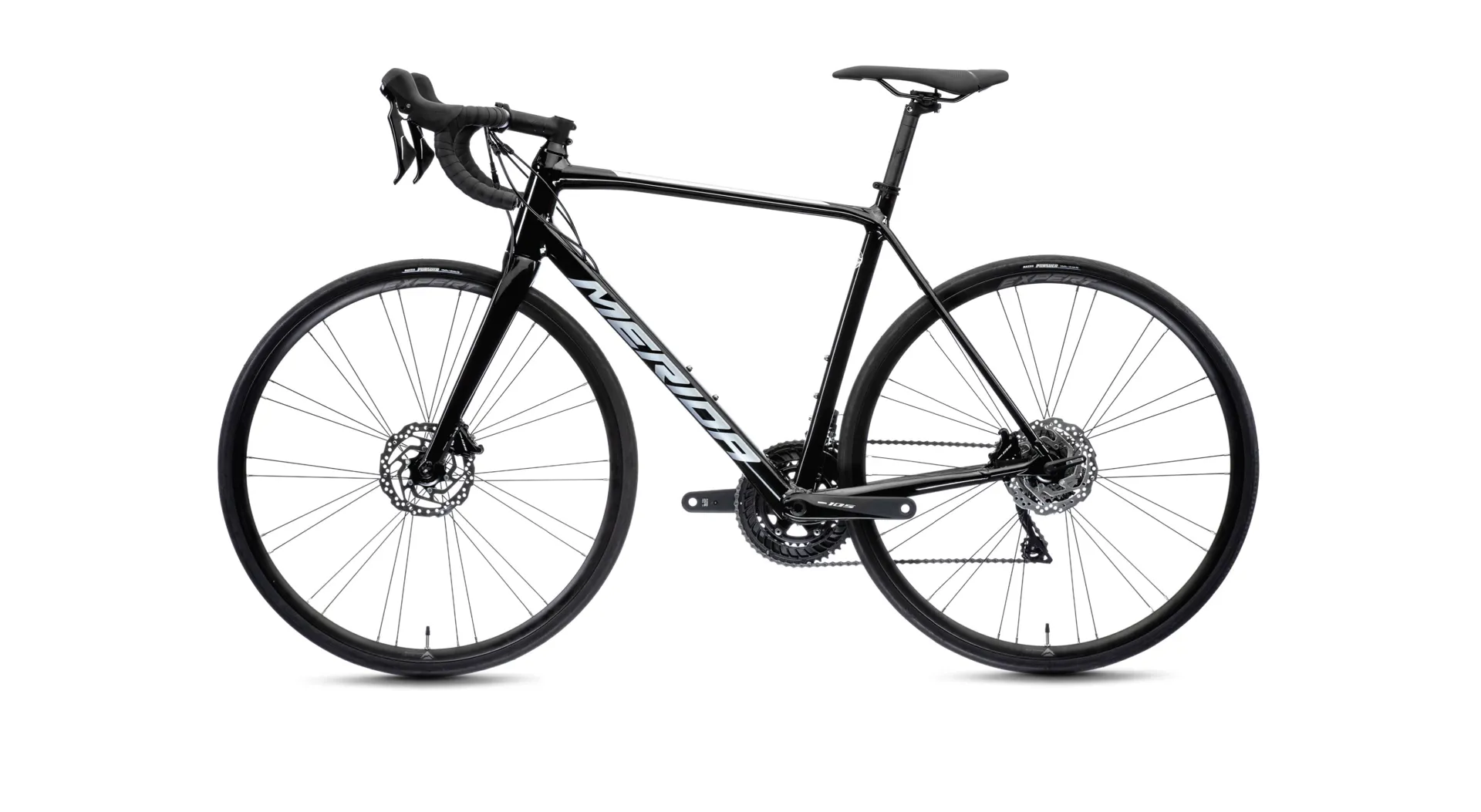

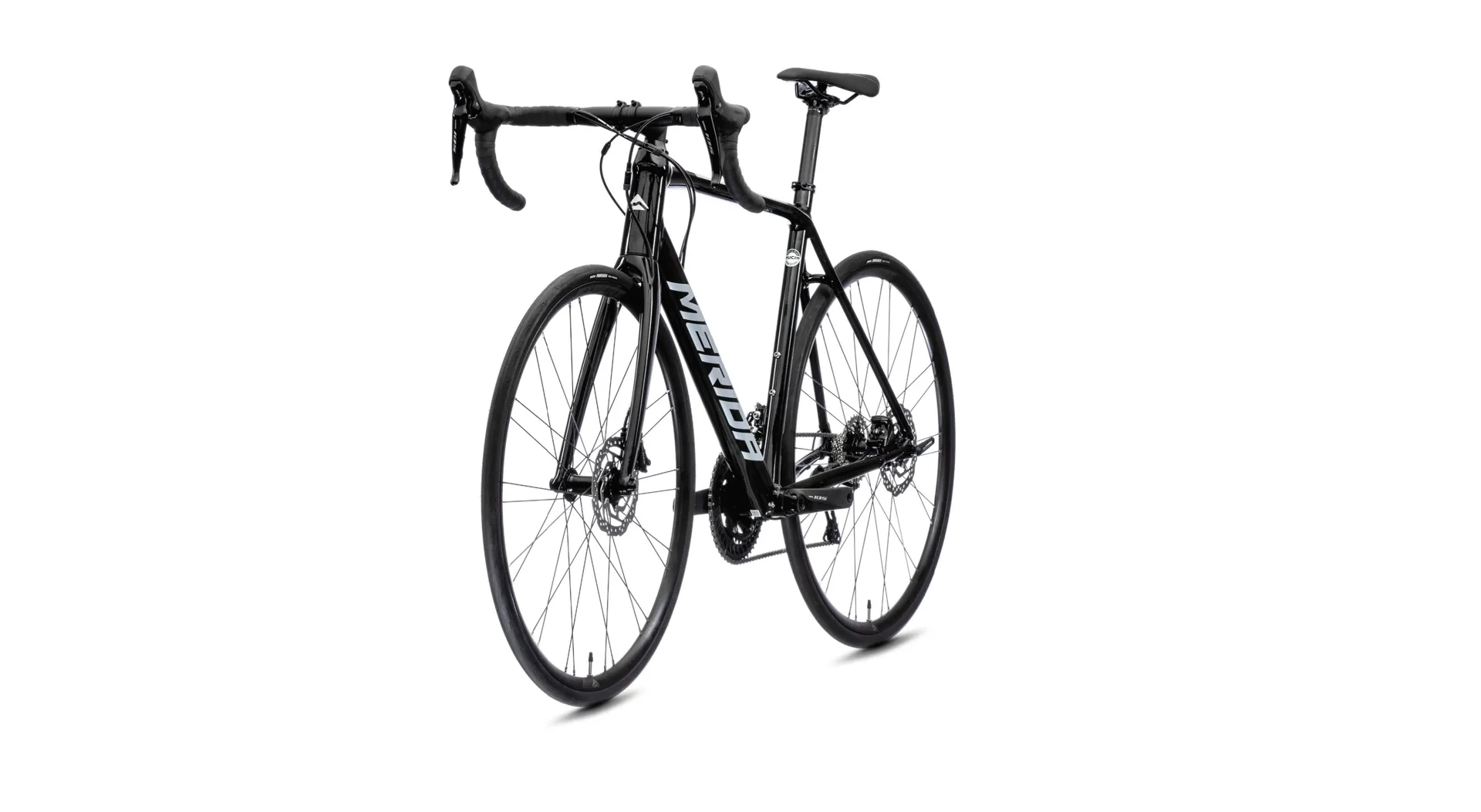

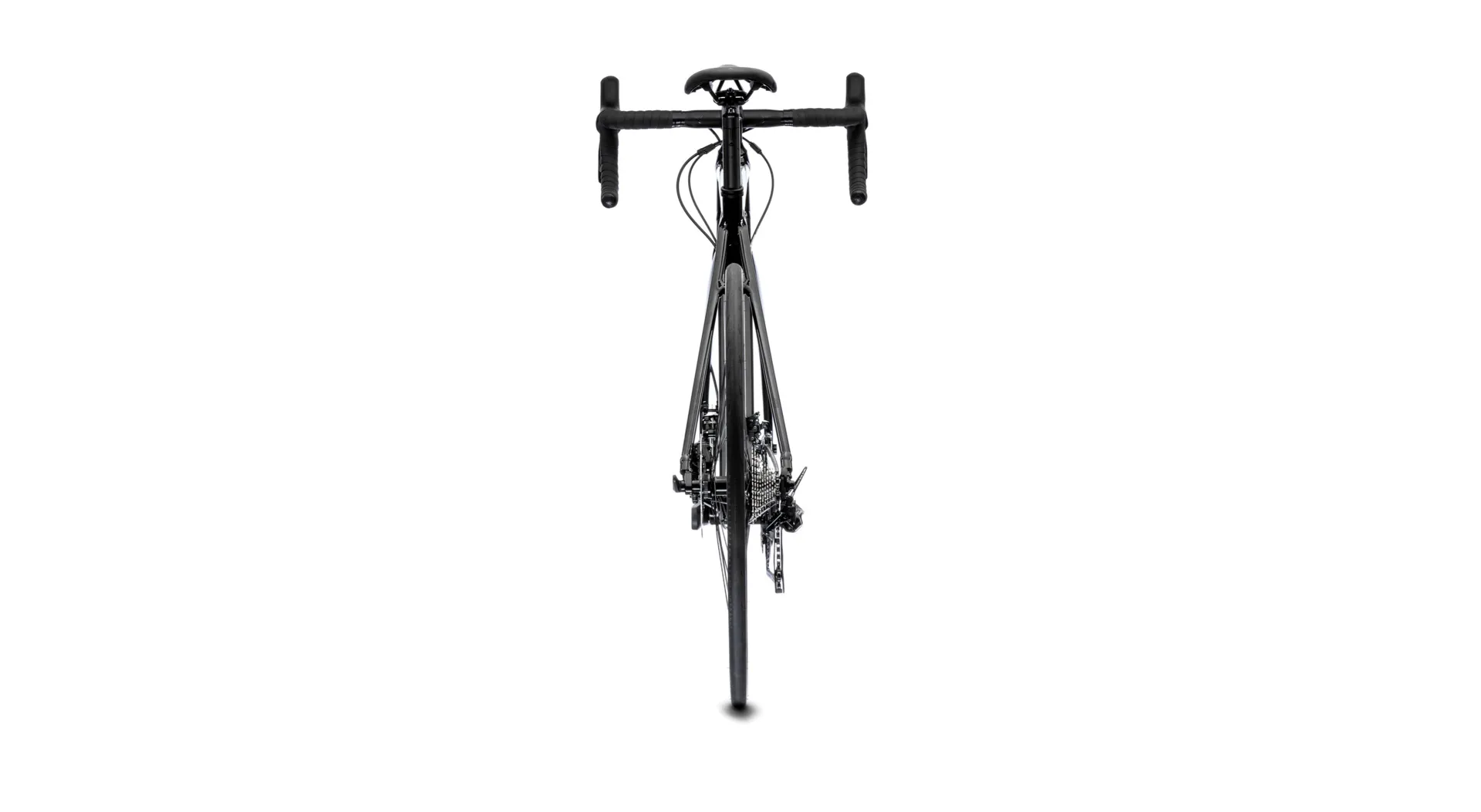

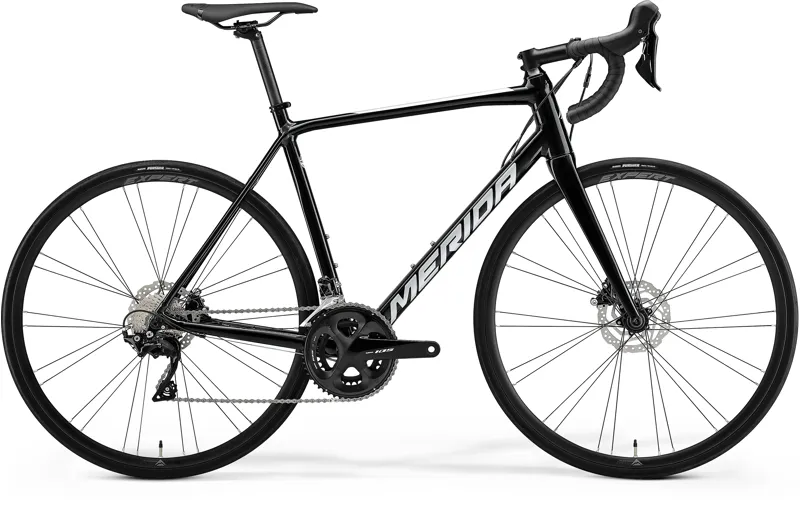

Merida - Scultura 400 Road Race Bike in Black

Brand:Merida

Code:P-N107


View 360

  • Lightweight 6066 triple butted aluminium frame
  • Full carbon tapered fork
  • Less aggressive geometry than the SCULTURA CF5 and CF3 models
  • Shimano 105 11-speed groupset
  • MERIDA EXPERT SL handlebar and MERIDA EXPERT CC stem
  • MERIDA EXPERT CC carbon seat post




Lightweight aluminium road bike with full carbon tapered fork, 22 speed Shimano 105 drivetrain and Shimano 105 hydraulic disc brakes. The Scultura has always been the powerhouse of any Merida sponsored or supported ProTour teams powering them to world tour stage victories.

The Lite frame uses cutting edge aluminium technology - 6066 series triple butted and hydroformed aluminium tubing with smooth welding to deliver a light responsive frame. The tapered full carbon fork delivers precise steering.
Technical Information
FrameLite - Hydroformed triple butted 6066 aluminium with smooth welding. Tapered head tube, Pressfit BB Standard, 142 x 12mm axle standard. Max. tyre size 700 x 28c
Rear Shock
ForkScultura CF2 Disc; Full carbon; tapered steerer. Max. tyre size: 700 x 28c
HeadsetMerida M2331 Neck
StemMerida Expert CC; aluminium; 31.8mm diameter; -5 degree rise - Stem length: 80mm (XXS/XS), 90mm (S), 100mm (SM/ML), 110mm (L/XL)
HandlebarMerida Expert SL, aluminium; Width: 380mm(XXS), 400mm (XS-S), 420mm (S/M-M/L), 440mm (L-XL)
GripMerida Road Expert
Brake TypeHydraulic disc
Brake LeverShimano 105
Front BrakeShimano 105; hydraulic disc brake caliper with Shimano RT10; 160mm rotor
Rear BrakeShimano 105; hydraulic disc brake caliper with Shimano RT10; 160mm rotor
Front TyreMaxxis Pursuer; 700 x 25C; Kevlar bead; folding
Rear TyreMaxxis Pursuer; 700 x 25C; Kevlar bead; folding
Wheel Size700c
RimMerida Expert SL; 17mm inner rim width; 22mm depth; aluminium; Tubeless ready (tubeless tape and valves not included)
SpokesDouble Butted Black stainless
Front HubVP CLK170F; 100x12mm; 28 spokes; Center lock
Rear HubVP CLK270R; 142x12mm; 28 spokes; Center lock. With Merida Expert SL axle; including removable lever; 6/4mm allen key
Speeds22
Front DerailleurShimano 105
Rear DerailleurShimano 105; GS
Shift LeversShimano 105 disc
ChainKMC X11
CassetteKMC X11
ChainsetShimano 105; 50-34 tooth chainset. Crank length: 165mm (XXS), 170mm (XS,S), 172.5mm (S/M,M/L), 175mm (L/XL)
Bottom BracketShimano SM-BB71-41B, Pressfit 86.5
PedalsNot included
SaddleMerida Comp SL; V-mount
Seat PostMerida Expert CC; Carbon; 27.2mm diameter; 15mm lay back
Motor
Battery Capacity
eBike Display
Sizing Information



We’re all different – and many of us fall between frame sizes

We recommend you try a bike for size at your local Merida dealer (see Dealer Search)

As a rough guide…

  • Forspeed, we suggest you opt for asmallerframe size
  • If you use asuspension seatpost, we recommend deducting approx. 3cm (1 inch) from the frame size

MTB FULL SUSPENSION

FRAME SIZEBODY HEIGHT
S< 173 cm
M167 - 183 cm
L177 - 190 cm
XL> 187 cm

MTB HARDTAILS

FRAME SIZEBODY HEIGHT
XS< 163 cm
S157 - 173 cm
M167 - 183 cm
L177 - 190 cm
XL187 - 196 cm
XXL> 192 cm

ROAD RACE

FRAME SIZEBODY HEIGHT
4XS< 152 cm
3XS148 - 157 cm
XXS153 - 162 cm
XS158 - 167 cm
S163 - 172 cm
S/M168 - 177 cm
M/L173 - 182 cm
L178 - 187 cm
XL> 183 cm

GRAVEL

FRAME SIZEBODY HEIGHT
XS< 167 cm
S165 - 177 cm
M173 - 185 cm
L181 - 192 cm
XL> 188 cm

TREKKING – CROSSWAY

FRAME SIZEBODY HEIGHT
XXS< 149 cm
XS145 - 160 cm
S155 - 170 cm
M161 - 180 cm
L171 - 190 cm
XL> 185 cm

ELECTRIC MOUNTAIN BIKES

FRAME SIZEBODY HEIGHT
XS< 163 cm
S157 - 173 cm
M167 - 183 cm
L177 - 190 cm
XL> 187 cm

E-TREKKING

FRAME SIZEBODY HEIGHT
XS< 160 cm
S155 - 170 cm
M161 - 180 cm
L171 - 190 cm
XL> 185 cm

E-CITY

FRAME SIZEBODY HEIGHT
XS< 158 cm
S155 - 165 cm
M160 - 177 cm
L168 - 185 cm
XL> 180 cm
