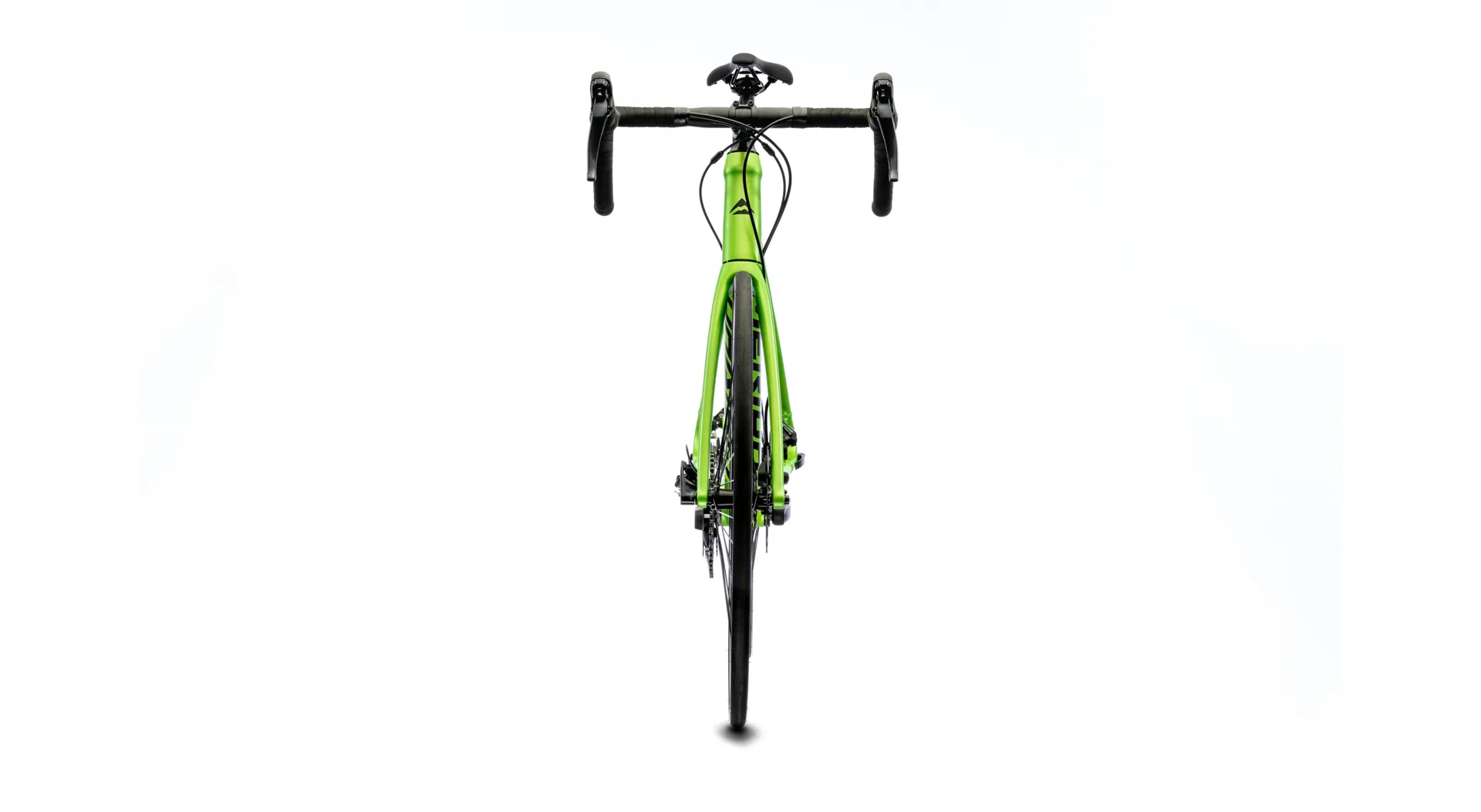

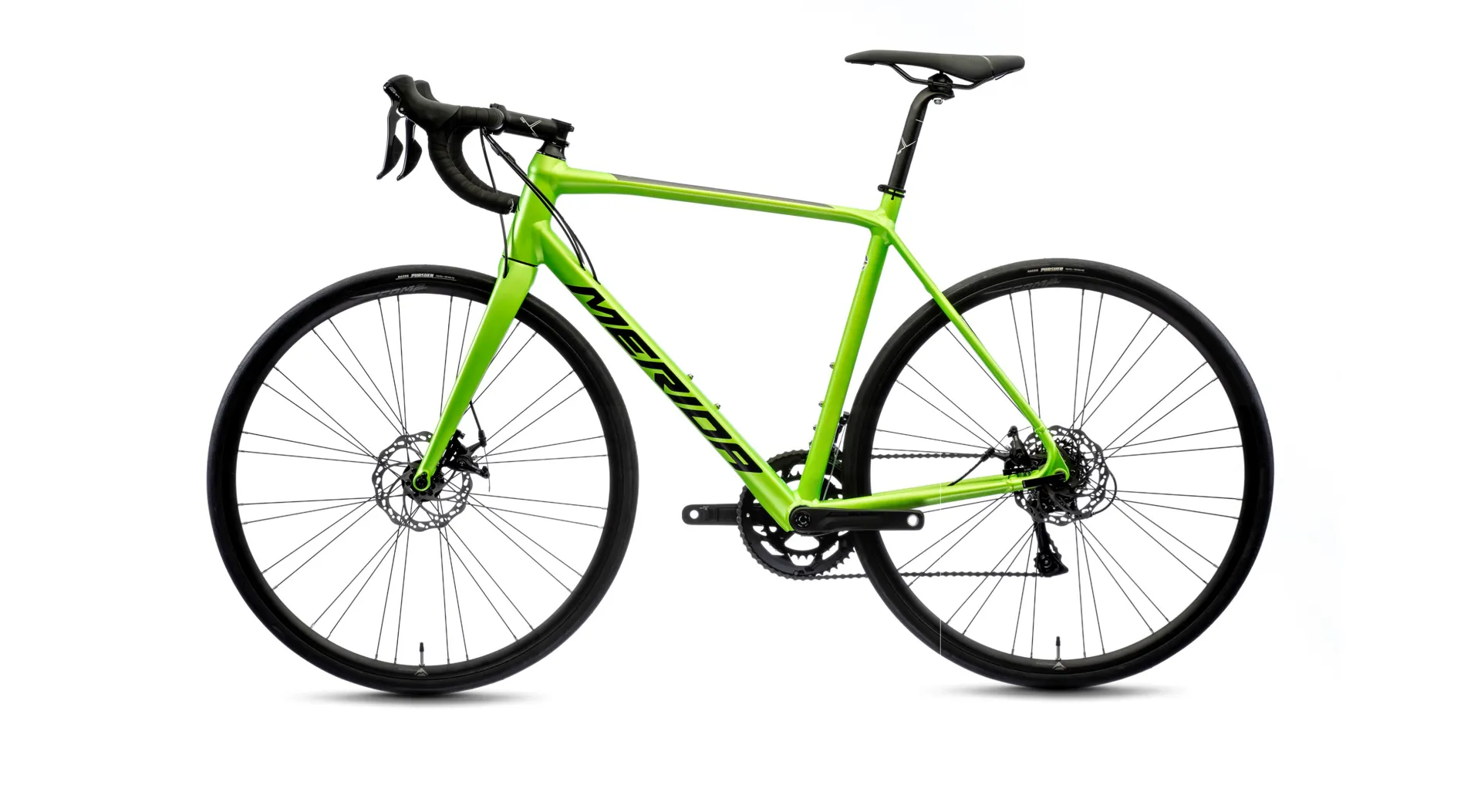

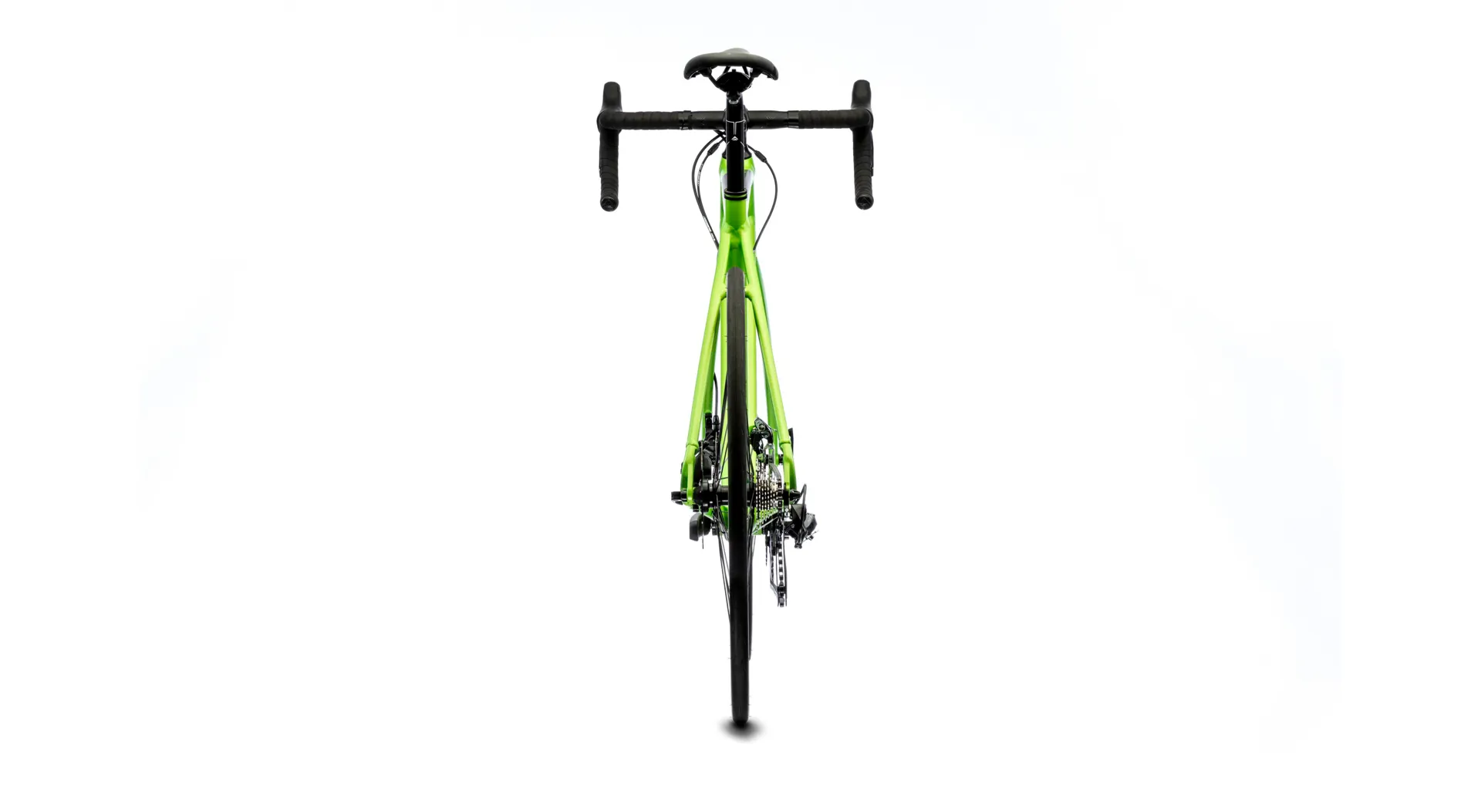

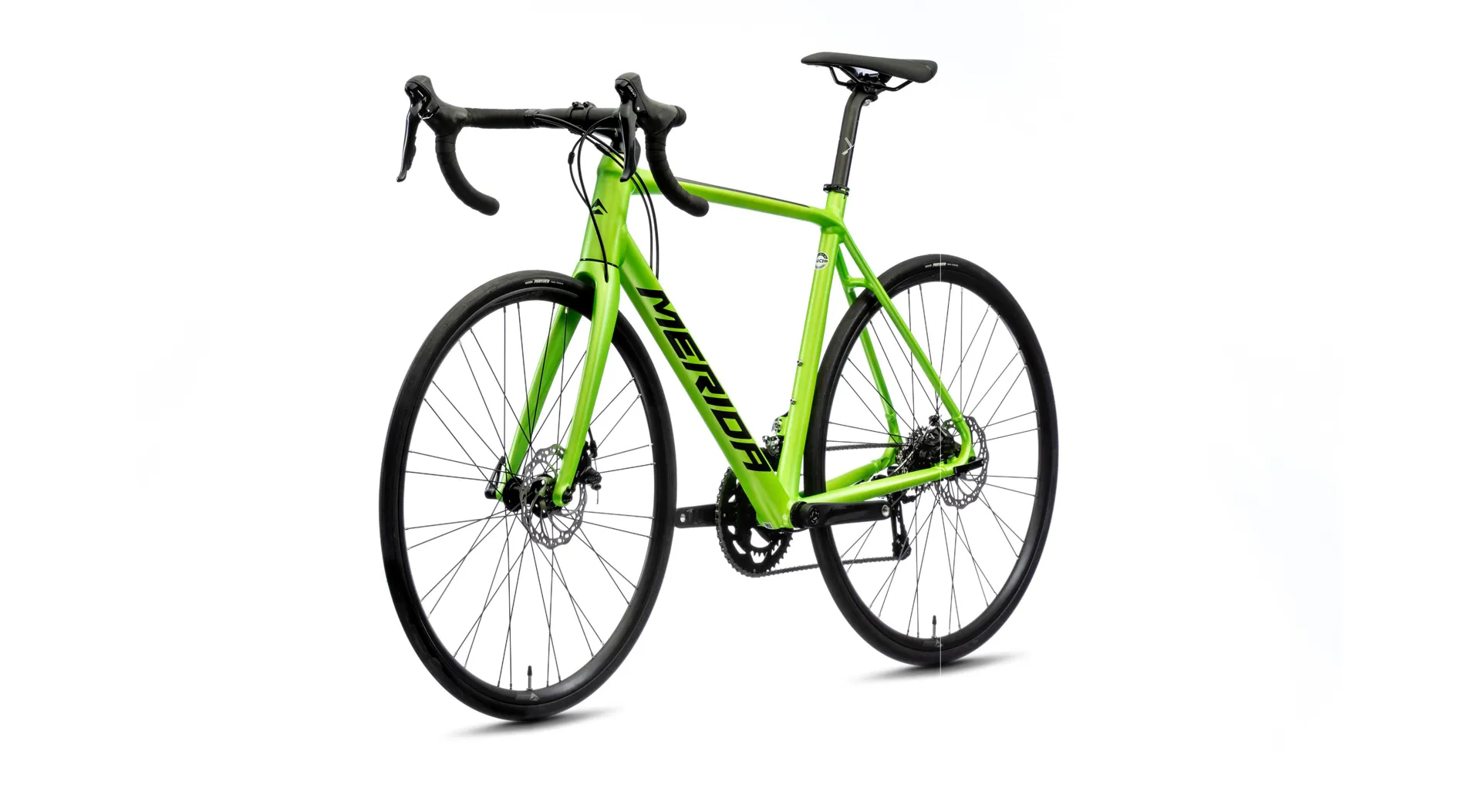

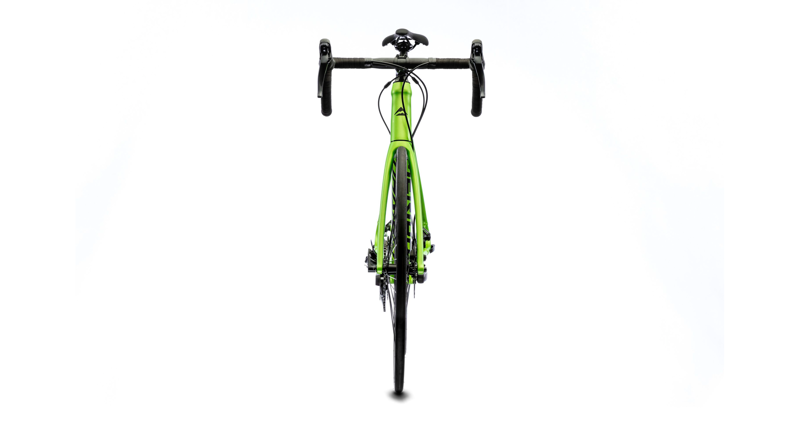

Merida - Scultura 200 Road Race Bike in Green

Brand:Merida

Code:P-N101


View 360

  • Lightweight 6066 triple butted aluminium frame with full carbon tapered fork
  • Less aggressive geometry than the SCULTURA CF5 and CF3 models
  • Shimano Sora 9-speed shifters and derailleurs
  • FSA Omega chainset
  • MERIDA EXPERT SL handlebar and MERIDA COMP CC stem
  • MERIDA COMP SL wheels





Lightweight aluminium road bike with full carbon tapered fork, 18 speed Shimano Sora and Promax mechanical disc brakes. The Scultura has always been the powerhouse of any Merida sponsored or supported ProTour teams powering them to world tour stage victories.

The Lite frame uses cutting edge aluminium technology - 6066 series triple butted and hydroformed aluminium tubing with smooth welding to deliver a light responsive frame. The tapered full carbon fork delivers precise steering.
Technical Information
FrameLite - Hydroformed triple butted 6066 aluminium with smooth welding. Tapered head tube, Pressfit BB Standard, 142 x 12mm axle standard. Max. tyre size 700 x 28c
Rear Shock
ForkScultura CF2 Disc; Full carbon; tapered steerer. Max. tyre size: 700 x 28c
HeadsetMerida M2339 Neck
StemMerida Comp CC; aluminium; 31.8mm diameter; -6 degree rise - Stem length: 80mm (XXS/XS), 90mm (S), 100mm (SM/ML), 110mm (L/XL)
HandlebarMerida Expert SL, aluminium; Width: 380mm(XXS), 400mm (XS-S), 420mm (S/M-M/L), 440mm (L-XL)
GripMerida Road Comp
Brake TypeMechanical disc
Brake LeverShimano Sora
Front BrakePromax DSK-330R; Mechanical disc brake caliper with Promax 160G; 160mm rotor
Rear BrakePromax DSK-330R; Mechanical disc brake caliper with Promax 160G; 160mm rotor
Front TyreMaxxis Pursuer; 700 x 25C; Kevlar bead; folding
Rear TyreMaxxis Pursuer; 700 x 25C; Kevlar bead; folding
Wheel Size700c
RimMerida Comp SL; 17mm inner rim width; 22mm depth; aluminium; Tubeless ready (tubeless tape and valves not included)
SpokesBlack stainless
Front HubJoytech D981SB; 100x12mm; 28 Spokes, 6 bolt
Rear HubJoytech D982TSE-R; 142x12mm; 28 spokes; 6 bolt
Speeds18
Front DerailleurShimano Sora
Rear DerailleurShimano Sora; GS
Shift LeversShimano Sora
ChainKMC M99
CassetteKMC M99
ChainsetFSA Omega; 50-34 tooth chainset. Crank length: 165mm (XXS), 170mm (XS,S), 172.5mm (S/M,M/L), 175mm (L/XL)
Bottom BracketFSA BB-AL86/Ø19
PedalsNot included
SaddleMerida Comp SL; V-mount
Seat PostMerida Comp CC; aluminium; 27.2mm diameter; 5mm lay back
Motor
Battery Capacity
eBike Display
Sizing Information



We’re all different – and many of us fall between frame sizes

We recommend you try a bike for size at your local Merida dealer (see Dealer Search)

As a rough guide…

  • Forspeed, we suggest you opt for asmallerframe size
  • If you use asuspension seatpost, we recommend deducting approx. 3cm (1 inch) from the frame size

MTB FULL SUSPENSION

FRAME SIZEBODY HEIGHT
S< 173 cm
M167 - 183 cm
L177 - 190 cm
XL> 187 cm

MTB HARDTAILS

FRAME SIZEBODY HEIGHT
XS< 163 cm
S157 - 173 cm
M167 - 183 cm
L177 - 190 cm
XL187 - 196 cm
XXL> 192 cm

ROAD RACE

FRAME SIZEBODY HEIGHT
4XS< 152 cm
3XS148 - 157 cm
XXS153 - 162 cm
XS158 - 167 cm
S163 - 172 cm
S/M168 - 177 cm
M/L173 - 182 cm
L178 - 187 cm
XL> 183 cm

GRAVEL

FRAME SIZEBODY HEIGHT
XS< 167 cm
S165 - 177 cm
M173 - 185 cm
L181 - 192 cm
XL> 188 cm

TREKKING – CROSSWAY

FRAME SIZEBODY HEIGHT
XXS< 149 cm
XS145 - 160 cm
S155 - 170 cm
M161 - 180 cm
L171 - 190 cm
XL> 185 cm

ELECTRIC MOUNTAIN BIKES

FRAME SIZEBODY HEIGHT
XS< 163 cm
S157 - 173 cm
M167 - 183 cm
L177 - 190 cm
XL> 187 cm

E-TREKKING

FRAME SIZEBODY HEIGHT
XS< 160 cm
S155 - 170 cm
M161 - 180 cm
L171 - 190 cm
XL> 185 cm

E-CITY

FRAME SIZEBODY HEIGHT
XS< 158 cm
S155 - 165 cm
M160 - 177 cm
L168 - 185 cm
XL> 180 cm
