Maximum Range | 40 miles / 64km |
---|
Recharge Time | 5 hours |
---|
Maximum Assisted Speed | 15.5mph / 25kmh |
---|
Motor | Bafang rear hub motor, 36v 250w, 32nm torque, 25kmh max speed |
---|
Motor Type | Rear hub motor |
---|
Motor Torque | 32nm |
---|
Battery | Integrated 360wh (36V 10.0ah), Samsung cells, Removable for charging on or off the bike |
---|
Battery Type | Integrated |
---|
Charger | 42V 2A, 3 pin UK plug |
---|

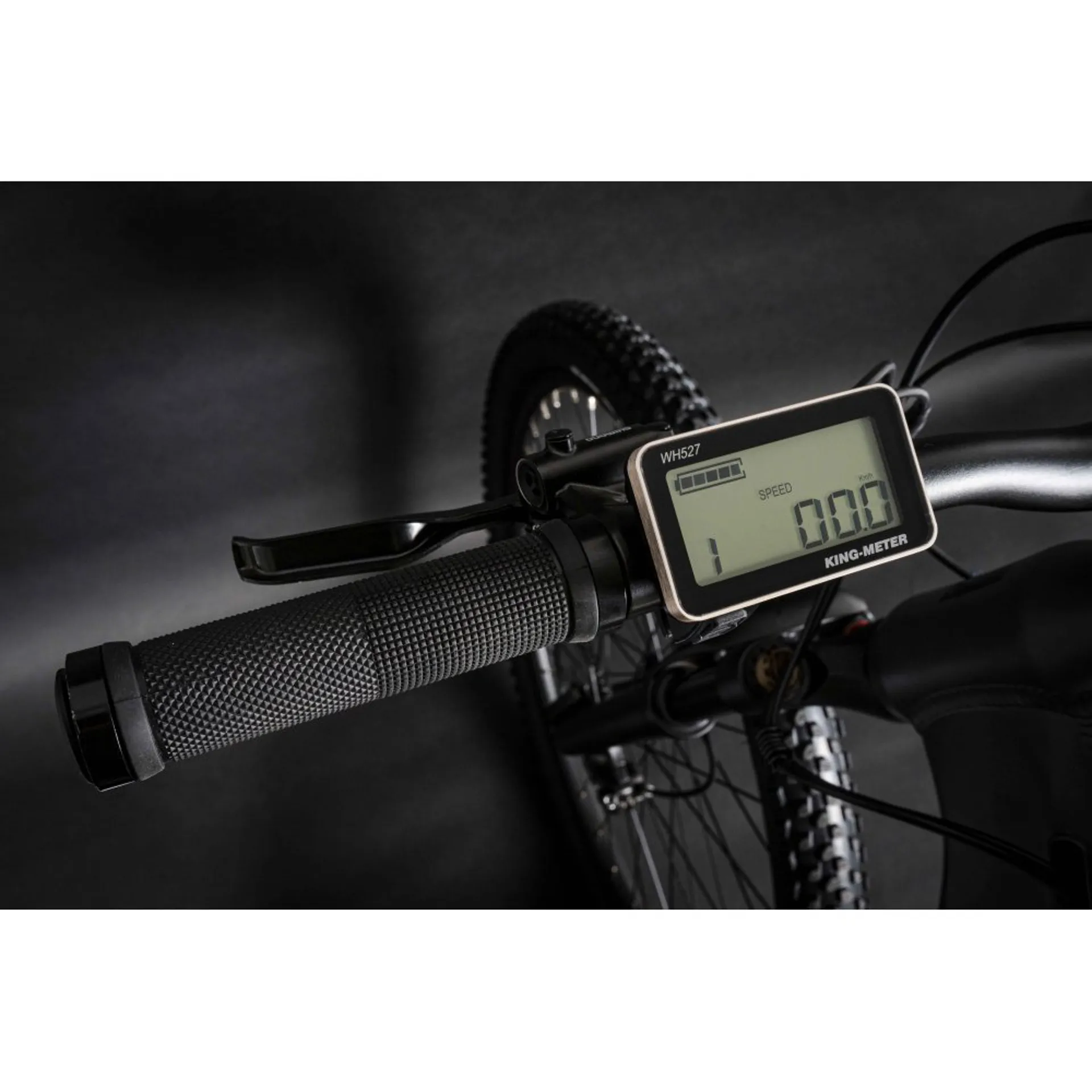

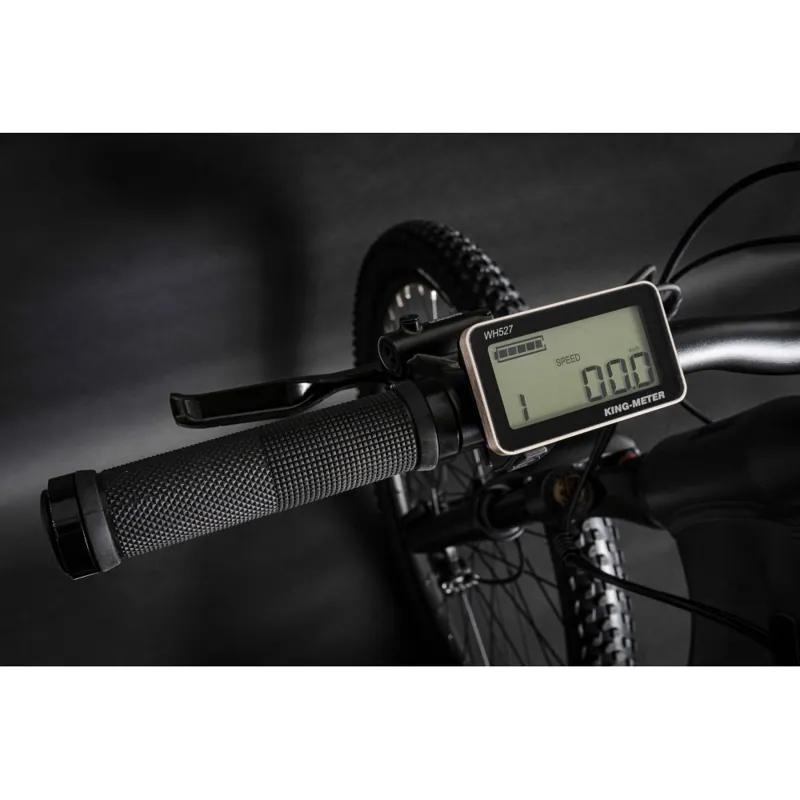

Display | Handlebar LCD display, 5 modes, Walk assist, Battery Indicator, Speed, Average speed, Max speed, Odometer, Trip, Trip Time |
---|
Speed Sensor | Left hand crank mounted |
---|

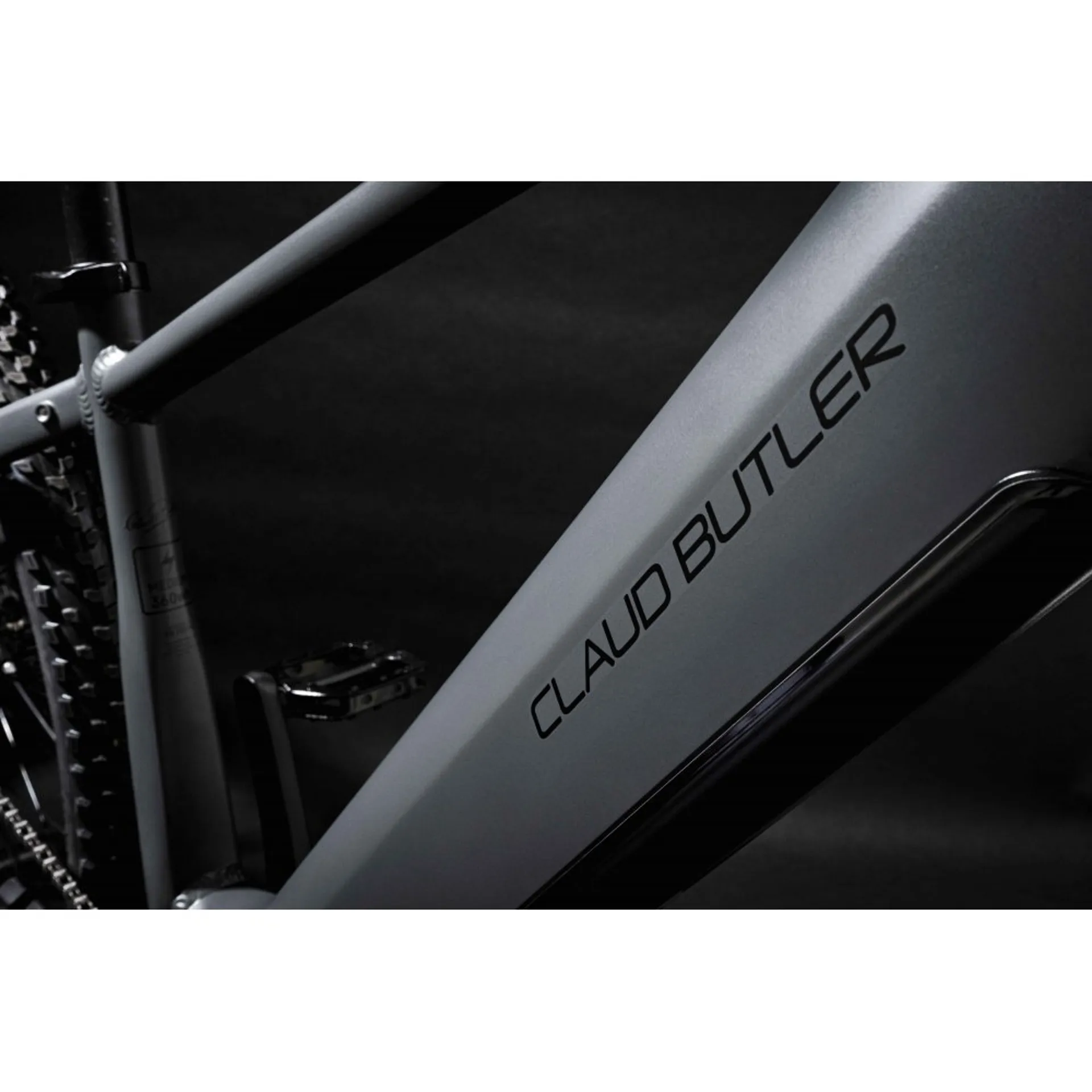

Frame | 6061 aluminium frame, Internal cable routing, Fully integrated removable battery |
---|
Frame Size | Medium (17") |
---|

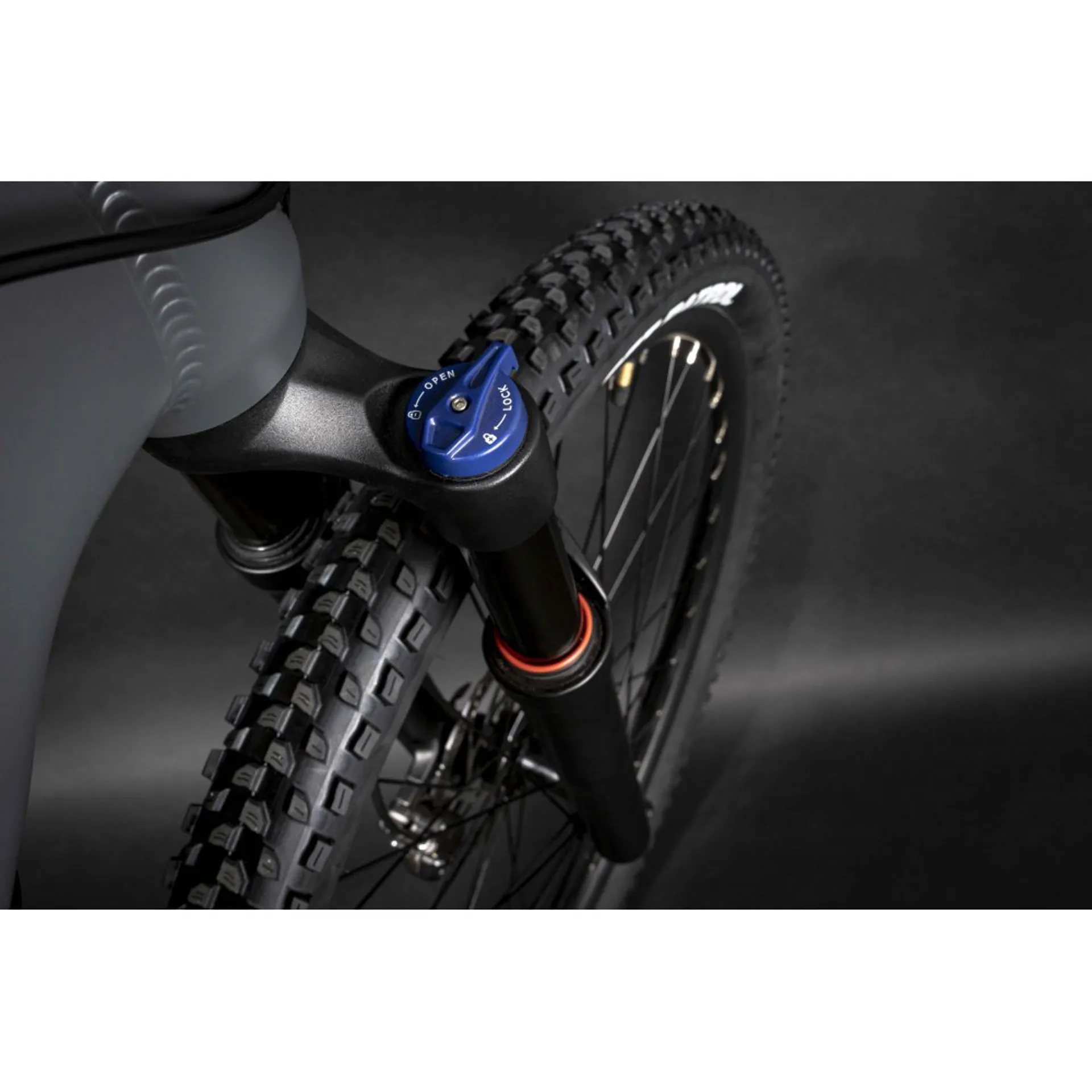

Fork | 29" Suspension fork, Hydraulic lockout, 100mm travel |
---|
Headset | Sealed bearings |
---|
Handlebar | Aluminium, 720mm wide, 20mm rise, 6° backsweep |
---|
Stem | Aluminium, 50mm reach, 31.8mm |
---|
Grips | Lock on grips, Black |
---|

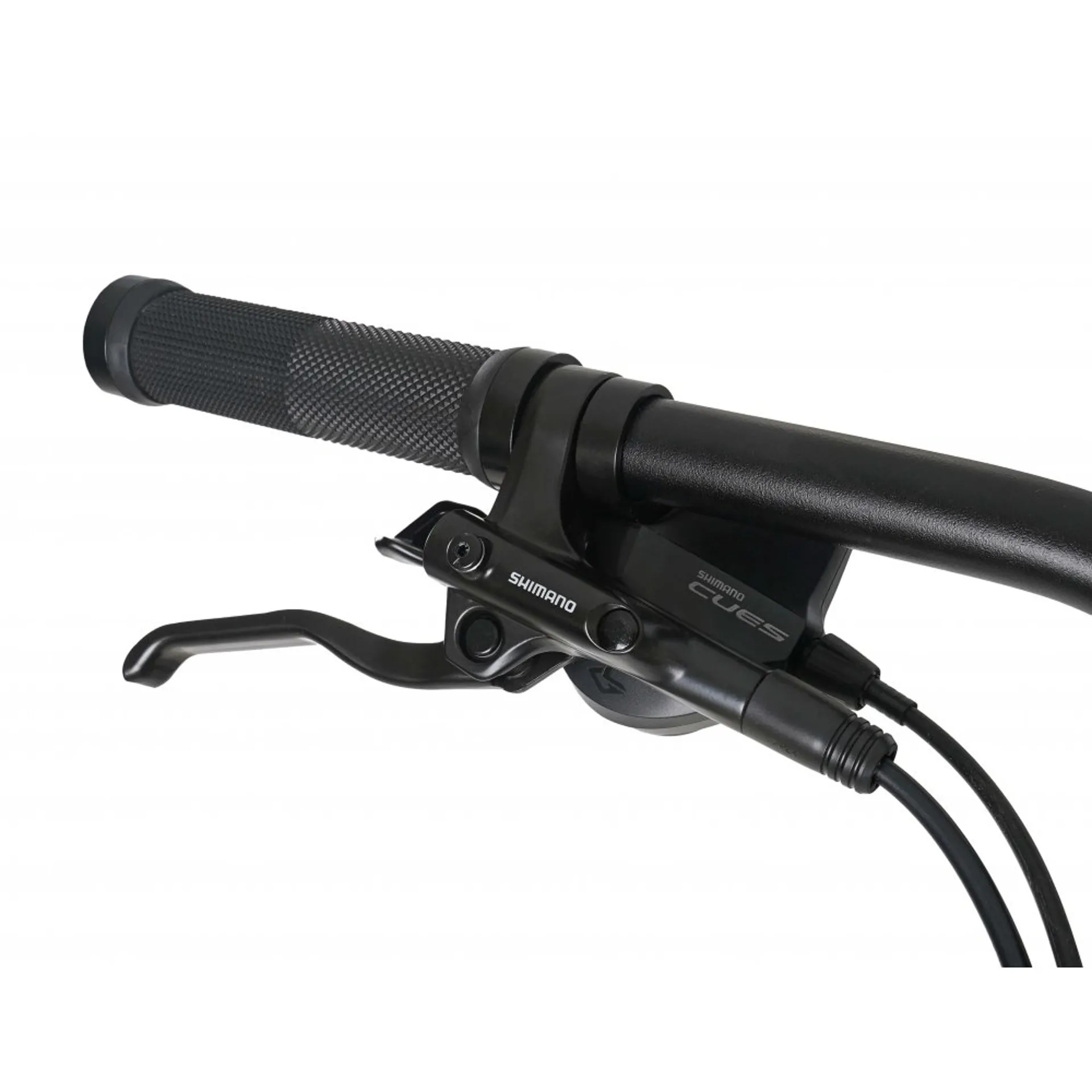

Gear Shifters | Shimano Cues SL-U4000-9R Rapidfire Plus, 9 speed |
---|

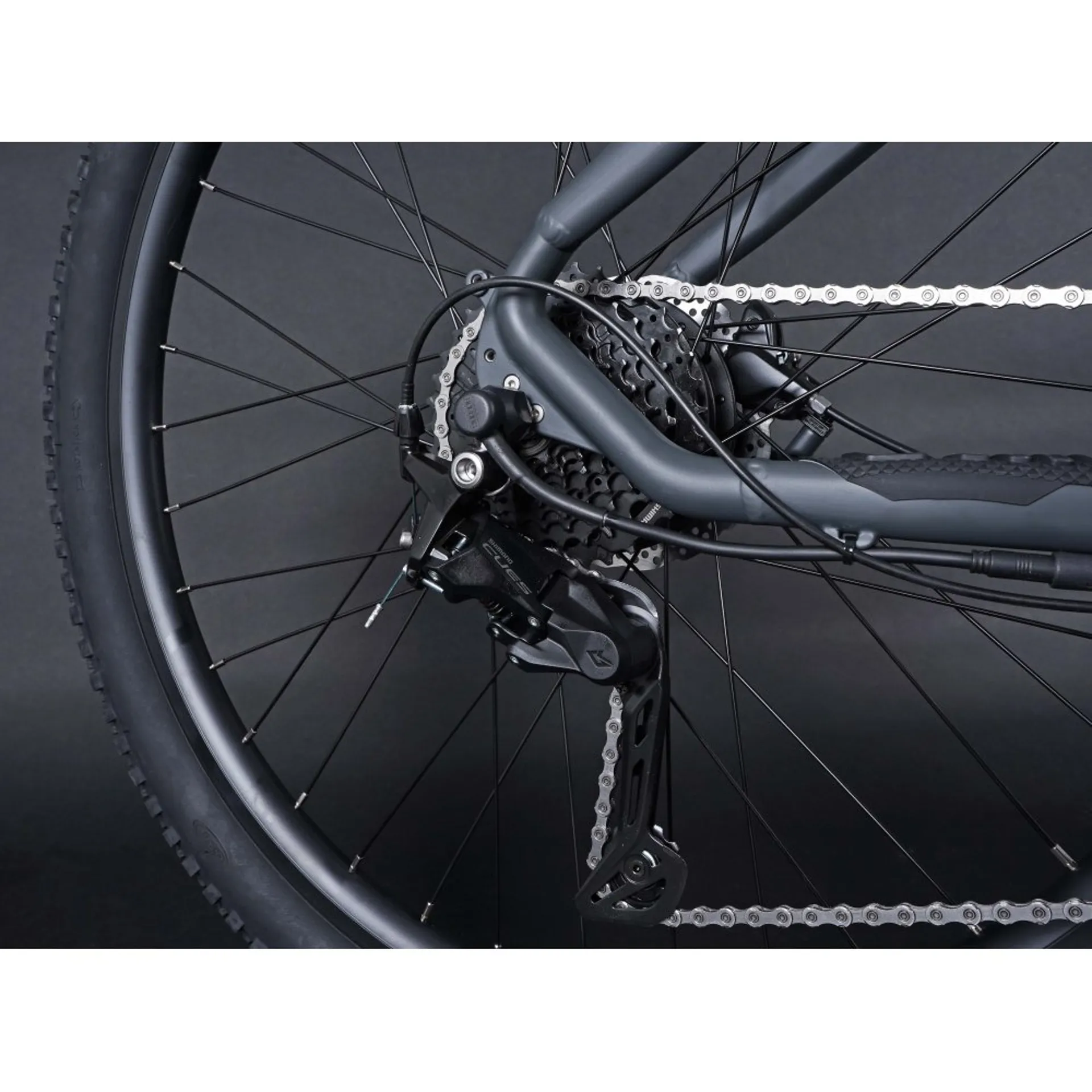

Rear Derailleur | Shimano Cues RD-U3020 Shadow, 9 speed |
---|
Chain | Shimano CN-LG500, 9 speed |
---|
Cassette/Freewheel | Shimano Cues CS-LG300-9, 11-36T, 9 speed |
---|
Chainset | Aluminium, 38T, 170mm |
---|
Number of Gears | 10 |
---|
Bottom Bracket | NA Shimano CN-LG500, 9 speed Shimano Cues CS-LG300-9, 11-36T, 9 speed Aluminium, 38T, 170mm Square taper, Sealed |
---|
Pedals | Alloy platform style, Black |
---|
Brakes | Shimano MT200 hydraulic disc, 180mm rotor (front), 160mm rotor (rear) |
---|
Brake Levers | Shimano MT200 hydraulic disc |
---|
Front Hub | Alloy with quick release, 36 hole |
---|
Rear Hub | Bafang rear hub motor, 36v 250w, 32nm torque, 25kmh max speed |
---|
Rims | 29" double wall alloy, 36 hole |
---|
Tyres | CST Patrol, 29x2.40", Black |
---|

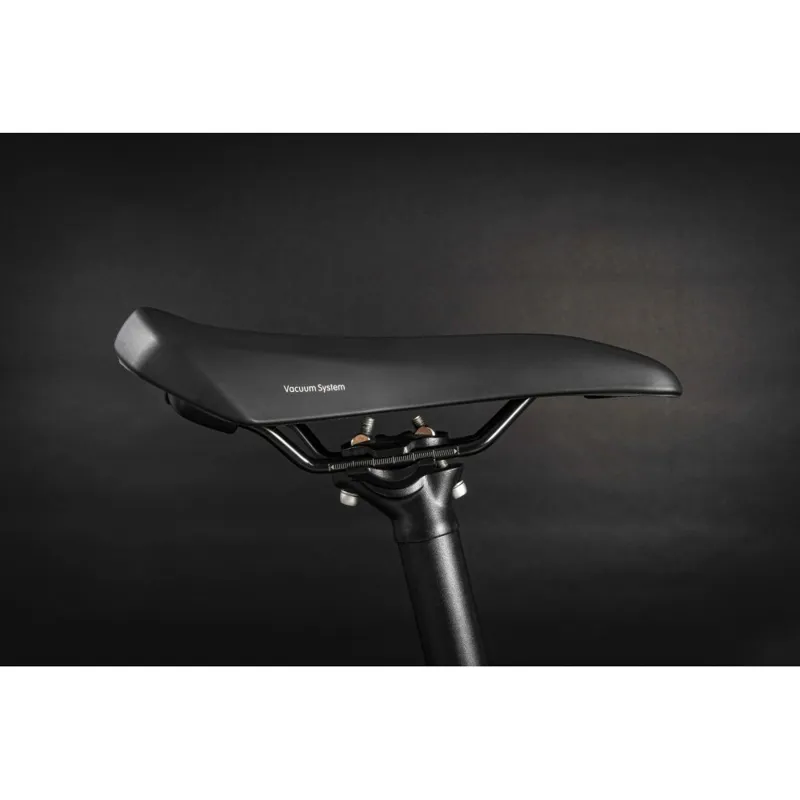

Saddle | Selle Royal |
---|
Seat Post | Aluminium, 350mm, 30.4mm |
---|
Other Accessories | Rubberised chain stay protector |
---|
Maximum Range | 40 miles / 64km |
---|
Recharge Time | 5 hours |
---|
Maximum Assisted Speed | 15.5mph / 25kmh |
---|
Motor | Bafang rear hub motor, 36v 250w, 32nm torque, 25kmh max speed |
---|
Motor Type | Rear hub motor |
---|
Motor Torque | 32nm |
---|
Battery | Integrated 360wh (36V 10.0ah), Samsung cells, Removable for charging on or off the bike |
---|
Battery Type | Integrated |
---|
Charger | 42V 2A, 3 pin UK plug |
---|
Display | Handlebar LCD display, 5 modes, Walk assist, Battery Indicator, Speed, Average speed, Max speed, Odometer, Trip, Trip Time |
---|
Speed Sensor | Left hand crank mounted |
---|
Frame | 6061 aluminium frame, Internal cable routing, Fully integrated removable battery |
---|
Frame Size | Large (19") |
---|
Fork | 29" Suspension fork, Hydraulic lockout, 100mm travel |
---|
Headset | Sealed bearings |
---|
Handlebar | Aluminium, 720mm wide, 20mm rise, 6° backsweep |
---|
Stem | Aluminium, 50mm reach, 31.8mm |
---|
Grips | Lock on grips, Black |
---|
Gear Shifters | Shimano Cues SL-U4000-9R Rapidfire Plus, 9 speed |
---|
Rear Derailleur | Shimano Cues RD-U3020 Shadow, 9 speed |
---|
Chain | Shimano CN-LG500, 9 speed |
---|
Cassette/Freewheel | Shimano Cues CS-LG300-9, 11-36T, 9 speed |
---|
Chainset | Aluminium, 38T, 170mm |
---|
Number of Gears | 9 |
---|
Bottom Bracket | NA Shimano CN-LG500, 9 speed Shimano Cues CS-LG300-9, 11-36T, 9 speed Aluminium, 38T, 170mm Square taper, Sealed |
---|
Pedals | Alloy platform style, Black |
---|
Brakes | Shimano MT200 hydraulic disc, 180mm rotor (front), 160mm rotor (rear) |
---|
Brake Levers | Shimano MT200 hydraulic disc |
---|
Front Hub | Alloy with quick release, 36 hole |
---|
Rear Hub | Bafang rear hub motor, 36v 250w, 32nm torque, 25kmh max speed |
---|
Rims | 29" double wall alloy, 36 hole |
---|
Tyres | CST Patrol, 29x2.40", Black |
---|
Saddle | Selle Royal |
---|
Seat Post | Aluminium, 350mm, 30.4mm |
---|
Other Accessories | Rubberised chain stay protector |
---|
