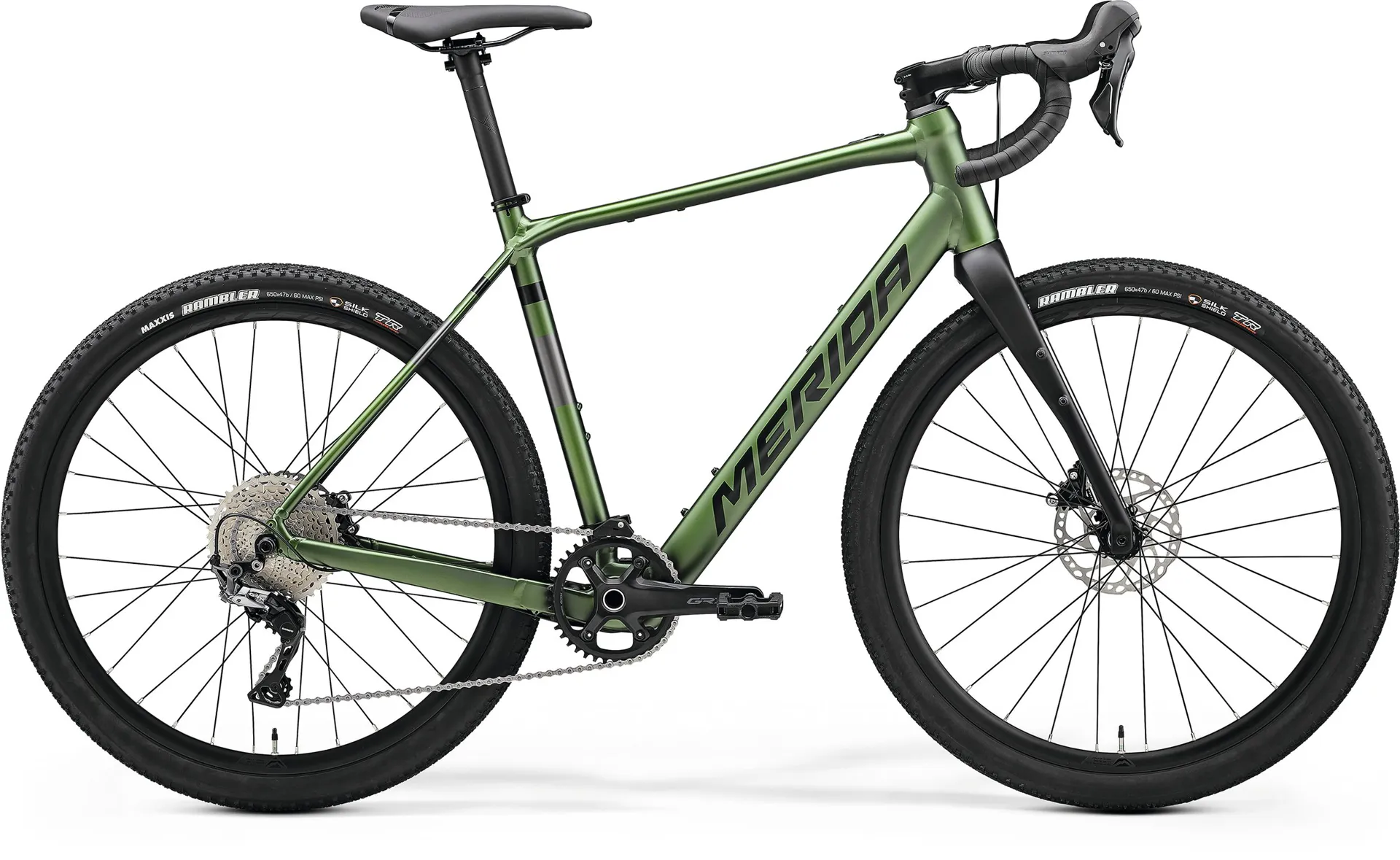

Merida - eSilex 600+ Electric Gravel Bike in Green/Black

Brand:Merida

Code:P-P968

  • 650b wheels
  • MAHLE ebikemotion 40Nm hub motor
  • Integrated 250Wh battery
  • Carbon fork
  • Shimano GRX 810 1 x 11 drivetrain
  • Shimano GRX 600 hydraulic disc brakes
650b+ wheel gravel eBike with Shimano GRX810 1 x 11 drivetrain powered by MAHLE ebikemotion 40Nm hub motor and 250Wh internal battery.

The dream ticket when discussed in the Merida UK office. A gravel bike with motor assistance, allowing you to go further, tackle more and generally just grin a lot. MAHLE's ebikemotion system uses a 40Nm rear hub motor powered by a fully integrated 250Wh battery hidden in the downtube. The low system weight combined with a carbon fork and sophisticated aluminium frame means the bike also feels lively without power assistance. There is almost no drag at all from the motor when it's not engaged. The system has an iWoc button for controlling support levels and a sophisticated app provides an opportunity to adjust the riding feel as well as offering post-ride analysis features. The frame has mounts for mudguards and rack and a neat hidden kickstand mount. Cable routing is through the frame with cables entering through a specific headset cap to keep the cockpit neat. The eSilex can be run with either 700c or 650b wheels.

Technical Information
Frame
Lite II - Hydroformed 6066 triple butted aluminium with integrated battery chamber, mounts for mudguards, rack and kickstand. 9mm QR axle standard, BSA BB standard. Max. tyre size 700 x 45c without mudguards, 700 x 42c with mudguards
Rear Shock
Fork
Merida Silex CF2; Tapered; carbon, Max. tyre size: 700 x 42c without mudguards, 700 x 35c with Mudguards. Max 27.5" x 50c
HeadsetMerida 8158
Stem
Merida Expert IR II; aluminium; 31.8mm diameter; 5 degree rise; length: 80mm all sizes
Handlebar
Merida Expert GRII; aluminium; 400mm (XS/S), 420mm (M), 440mm (L/XL)
GripMerida Expert
Brake TypeHydraulic disc
Brake LeverShimano GRX600
Front Brake
Shimano GRX600 2 piston hydraulic disc brake caliper with Shimano RT64 160mm rotor
Rear Brake
Shimano GRX600 2 piston hydraulic disc brake caliper with Shimano RT66 160 mm rotor
Front Tyre
Maxxis Rambler, 650B x 47C; ShieldWall / TLR
Rear Tyre
Maxxis Rambler, 650B x 47C; ShieldWall / TLR
Wheel Size700c
Rim
Merida Expert CX; 19mm inner rim width; 24mm rim depth; aluminium; Tubeless ready (tubeless tape and valves not included)
SpokesBlack stainless
Front Hub
VP CLK170F; 100 x 12mm; 28 spokes; Centerlock with Merida Expert SL axle
Rear HubMahle X35+ Hub motor; 40Nm
Speeds11
Front Derailleur
Rear DerailleurShimano GRX812
Shift Levers
ChainKMC e11s
CassetteShimano M5100; 11-42 teeth; 11 speed
Chainset
Shimano GRX600; 40 tooth chainring with 170mm-XS/S/SM/ML, 175 mm-L/XL crank with Mr. Control CH-CM1 chain device
Bottom BracketShimano BSA
PedalsVP Components - VPE-891
SaddleMerida Comp CC; V-mount
Seat Post
Merida Expert CC; carbon; 30.9mm diameter; in-line
Motor
Mahle B1-D; 250Wh, Mahle X35+ Hub motor; 40Nm
Battery Capacity250Wh
eBike DisplayColour coded iWoc power button
Sizing Information



We’re all different – and many of us fall between frame sizes

We recommend you try a bike for size at your local Merida dealer (see Dealer Search)

As a rough guide…

  • Forspeed, we suggest you opt for asmallerframe size
  • If you use asuspension seatpost, we recommend deducting approx. 3cm (1 inch) from the frame size

MTB FULL SUSPENSION

FRAME SIZEBODY HEIGHT
S< 173 cm
M167 - 183 cm
L177 - 190 cm
XL> 187 cm

MTB HARDTAILS

FRAME SIZEBODY HEIGHT
XS< 163 cm
S157 - 173 cm
M167 - 183 cm
L177 - 190 cm
XL187 - 196 cm
XXL> 192 cm

ROAD RACE

FRAME SIZEBODY HEIGHT
4XS< 152 cm
3XS148 - 157 cm
XXS153 - 162 cm
XS158 - 167 cm
S163 - 172 cm
S/M168 - 177 cm
M/L173 - 182 cm
L178 - 187 cm
XL> 183 cm

GRAVEL

FRAME SIZEBODY HEIGHT
XS< 167 cm
S165 - 177 cm
M173 - 185 cm
L181 - 192 cm
XL> 188 cm

TREKKING – CROSSWAY

FRAME SIZEBODY HEIGHT
XXS< 149 cm
XS145 - 160 cm
S155 - 170 cm
M161 - 180 cm
L171 - 190 cm
XL> 185 cm

ELECTRIC MOUNTAIN BIKES

FRAME SIZEBODY HEIGHT
XS< 163 cm
S157 - 173 cm
M167 - 183 cm
L177 - 190 cm
XL> 187 cm

E-TREKKING

FRAME SIZEBODY HEIGHT
XS< 160 cm
S155 - 170 cm
M161 - 180 cm
L171 - 190 cm
XL> 185 cm

E-CITY

FRAME SIZEBODY HEIGHT
XS< 158 cm
S155 - 165 cm
M160 - 177 cm
L168 - 185 cm
XL> 180 cm
