Merida

Merida - One-Sixty 10K Full Suspension Enduro Bike in Green

£9,000.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

Northwood Cycles Returns Policy

RETURNS

----

Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

Additional non-returnable items:

Gift cards


To complete your return, we require a receipt or proof of purchase.

Please do not send your purchase back to the manufacturer.


There are certain situations where no refund or only partial refunds are granted: (if applicable)

Any item not in its original condition is damaged or missing parts for reasons not due to our error.

Any item that is returned more than 30 days after receiving your item.

At the time you have returned your item to the shop, it will then be inspected and unless it is required to be sent back to the manufacturer for further inspection, a decision on approval or rejection will be made and a refund issued via the same payment method was the purchase.

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.


Late or missing refunds (if applicable)

If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next, contact your bank. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact us at info@northwoodcycles.co.uk.

Sale items (if applicable)

Only regular priced items may be refunded, unfortunately, sale items cannot be refunded.

Exchanges (if applicable)

We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at info@northwoodcycles.co.uk or call us at 01923824174 and bring your item to the shop.

Shipping

Shipping section: the easiest way to return your product is to bring it into the shop, should you post your product it should be sent to 118 Pinner Road, Northwood, HA6 1BP, United Kingdom.

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.

Depending on where you live, the time it may take for your exchanged product to reach you may vary.

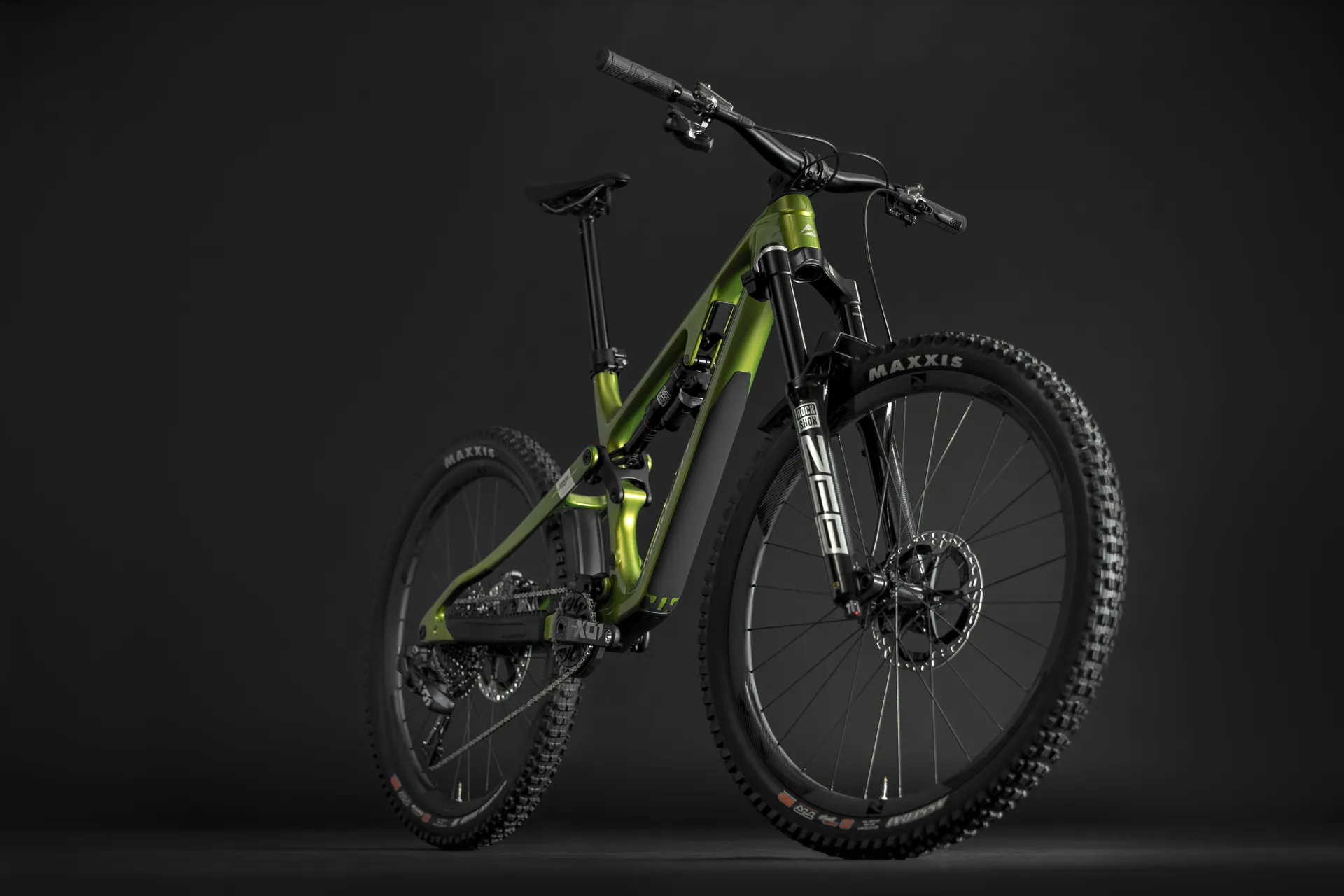

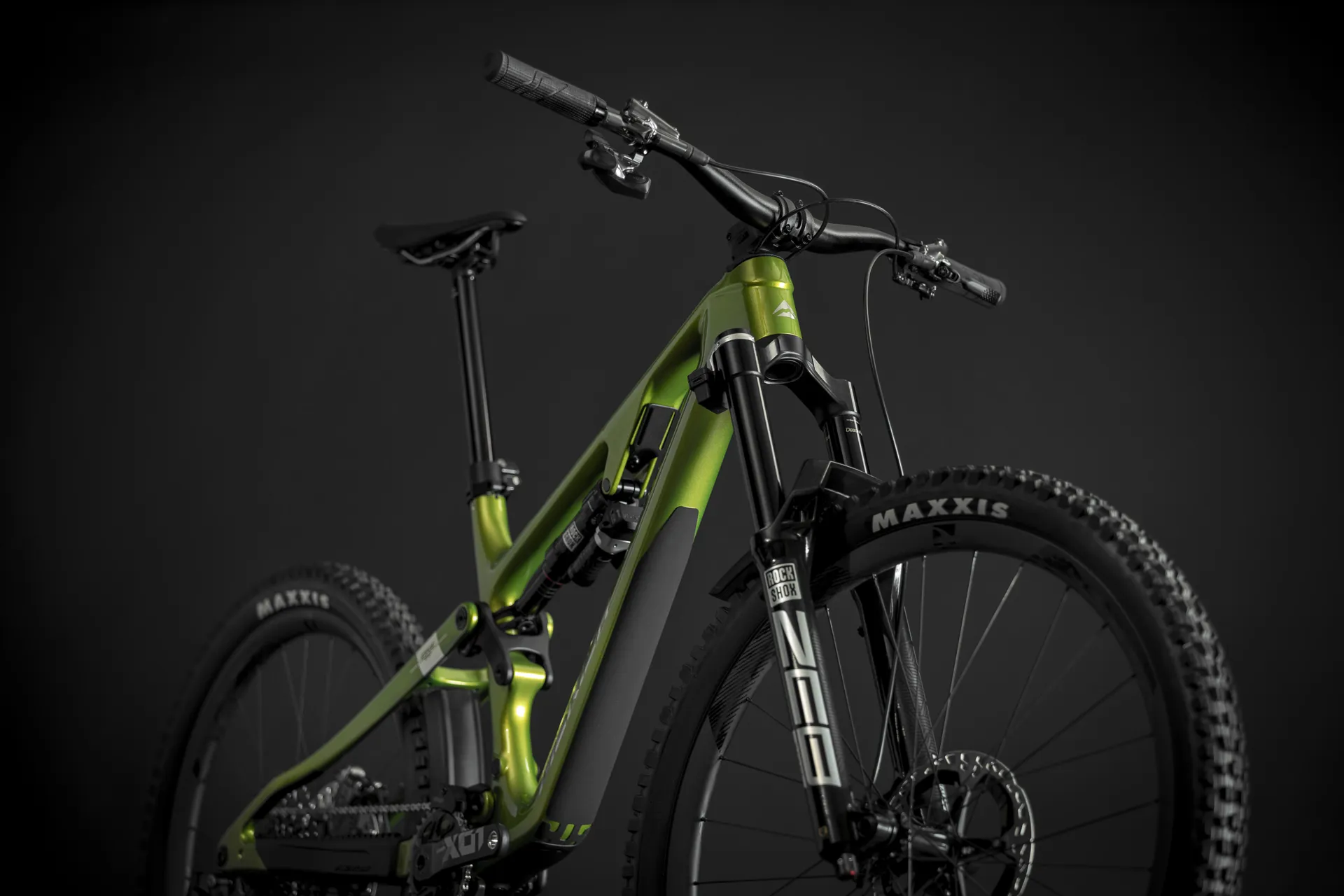

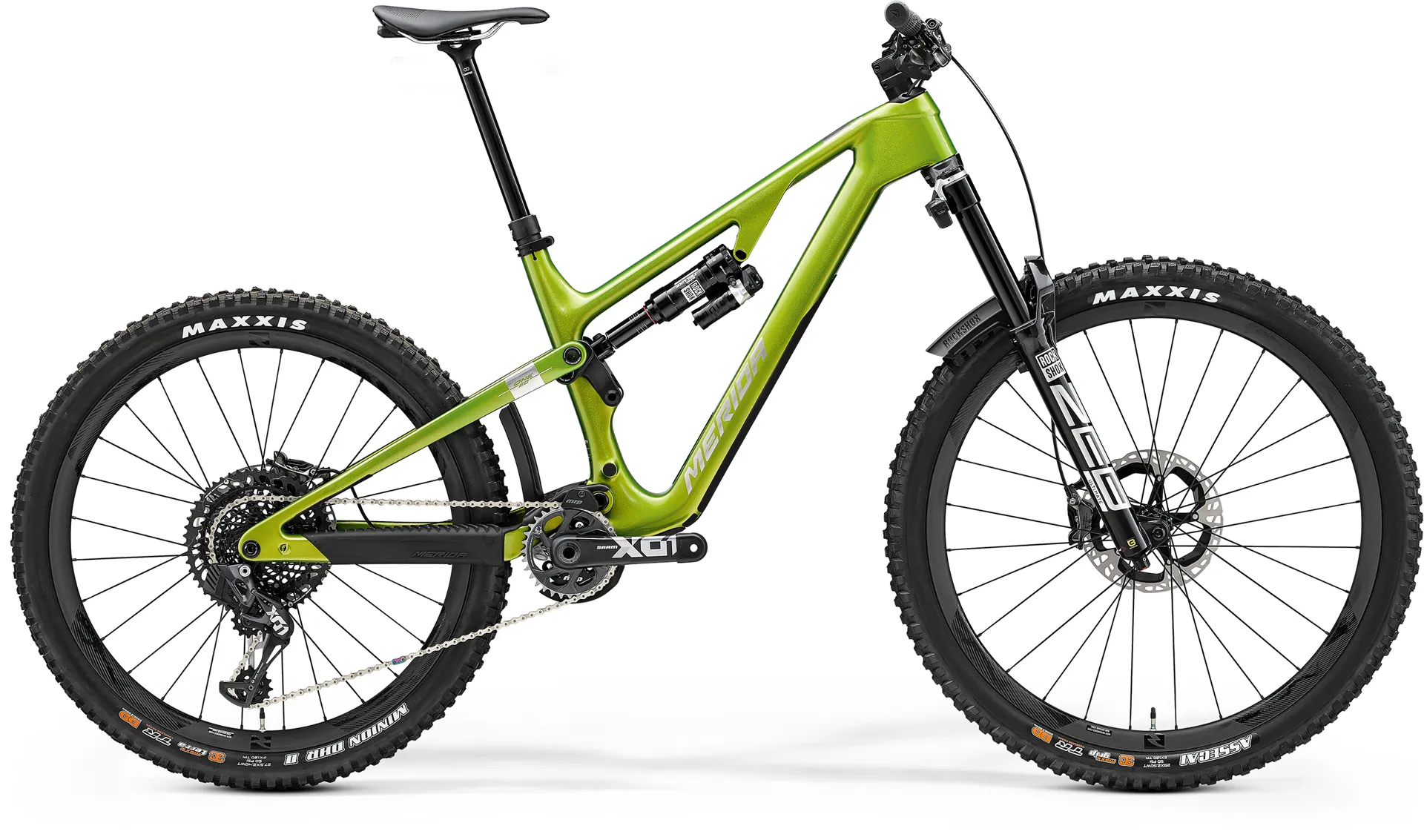

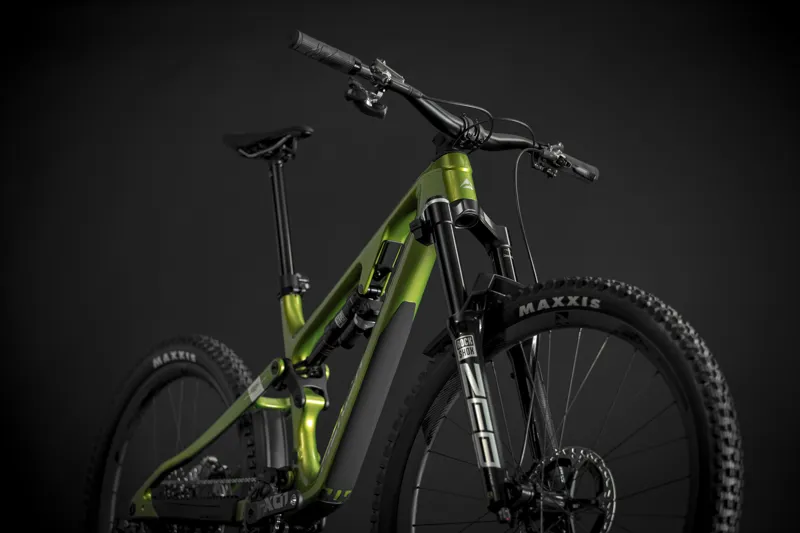

Merida - One-Sixty 10K Full Suspension Enduro Bike in Green

Season:2023

Brand:Merida

Code:P-N217



Highlights:
  • Full carbon frame with FAST kinematic suspension and radical enduro geometry
  • Mixed or full 29er wheel setup with Agilometer sizing
  • Smart RockShox Flight Attendant suspension
  • SRAM Eagle wireless drivetrain and tough but light Reynolds carbon wheelset
  • 230mm travel-adjustable dropper post
  • On-board tool storage and FidLock bottle cage
The best of everything! RockShox Flight Attendent suspension with SRAM Eagle XX1 1 x 12 wireless drivetrain. Reynolds Black Label Enduro wheelset, Shimano XTR 4 pot hydraulic disc brakes and travel adjustable dropper post.

Bike Radar / MBUK gave Merida double honours crowning the One-Sixty 6000 Enduro bike of the year and the One-Forty 700 Trail bike of the year. Of the One-Sixty they said: "it was the Merida’s proportions, supportive suspension and electrifying ride feel that finally clinched it.“The fun we had riding some of the gnarliest trails around Dolceacqua, skimming over jagged rocks and drifting loose turns, meant it had to be the winner.” With radical new geometry and the very best kit money can buy fitted to a lightweight but tough carbon frame, the new One-Sixty 10K has nothing to fear from the roughest, toughest tracks and race stages on the planet. Merida's new FAST kinematic design and full 29er or mixed wheel size setup is paired with top-end RockShox suspension including a burly 170mm Zeb fork and Super Deluxe shock, both with Flight Attendant smart lockout technology. We also fit a wide-range, top-end SRAM Eagle drivetrain for crisp wireless shifting. The One-Sixty is a radical, all-new design that pushes Merida's hard-hitting enduro platform to new heights. Just as well, because once it’s there it’s ready to rip the longest, toughest descents too. Merida's new suspension system uses a flexstay design with an adjustable rocker, so whether you choose to run it as a full 29er (162mm travel) or mixed 29/27.5” setup (171mm travel), the geometry is preserved. There’s a radically steep 79° seat tube angle for goat-like climbing and slack 64° head angle plus 170mm fork to deal with downhill trail chaos. New sizing allows riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. Wire Port cable routing plus reliable threaded bottom bracket round out the package, while carbon frame models offer on-board tool storage and FidLock magnetic bottle cages.

Technical Information

SPECIFICATION

Frame
CF4 carbon front and rear, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, storage trunk, flip chip for mullet or 29er. max tyre size - 2.5"
Rear Shock

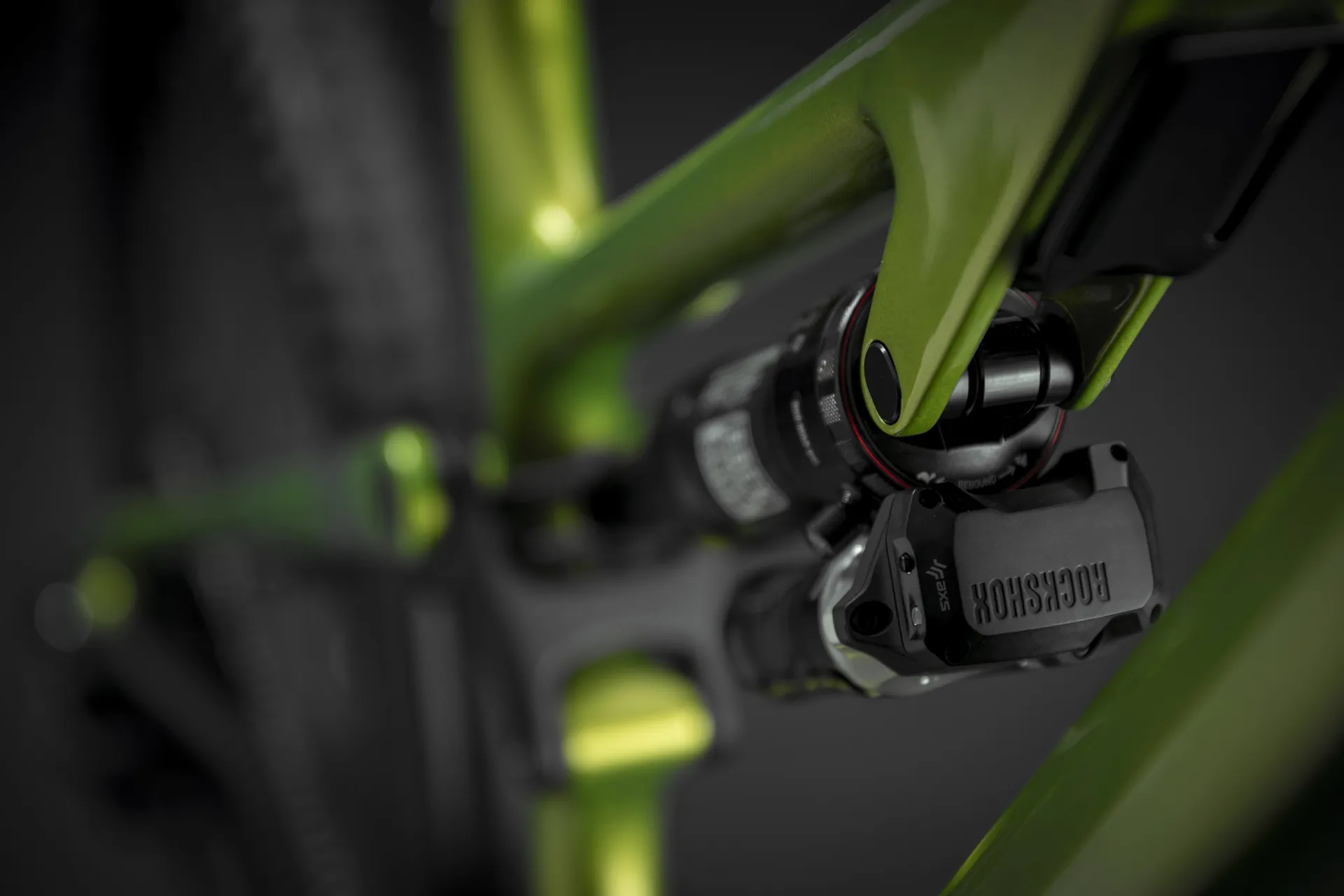

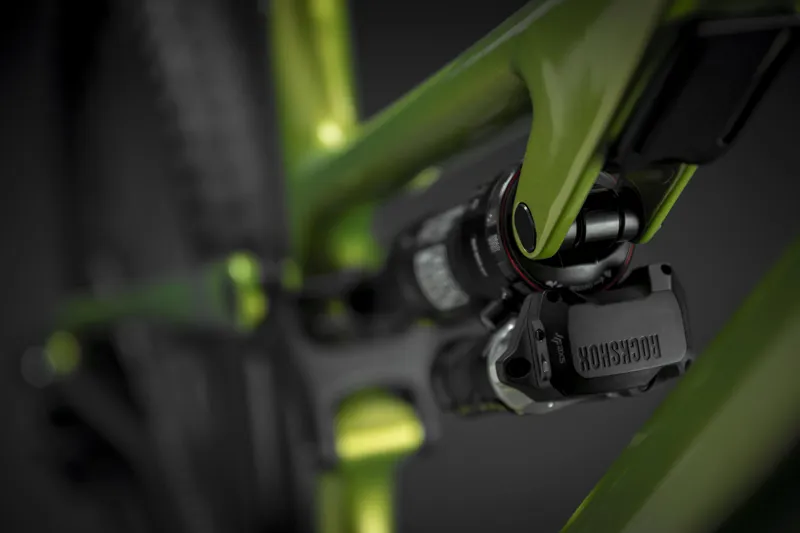

RockShox Super Deluxe Flight Attendant ; platform; adjustable low speed Compression
Fork
RockShox Zeb Flight Attendant; Air; 170mm travel; Tapered; 42mm fork offset; Max tyre size: 29" x 2.8"
Headset
Merida 8151 1-1/8"-1.5" cartridge bearing
Stem

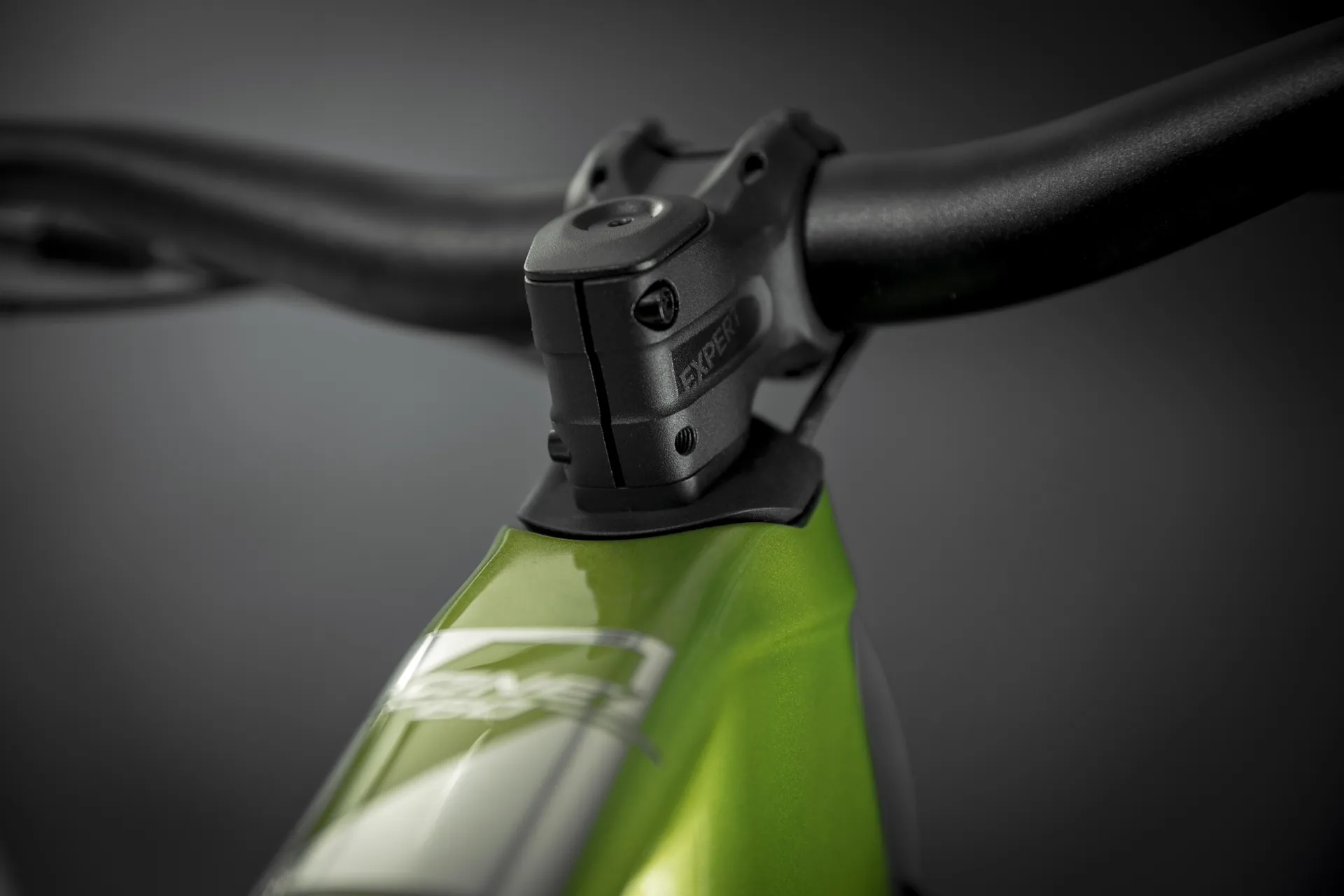

Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.
Handlebar

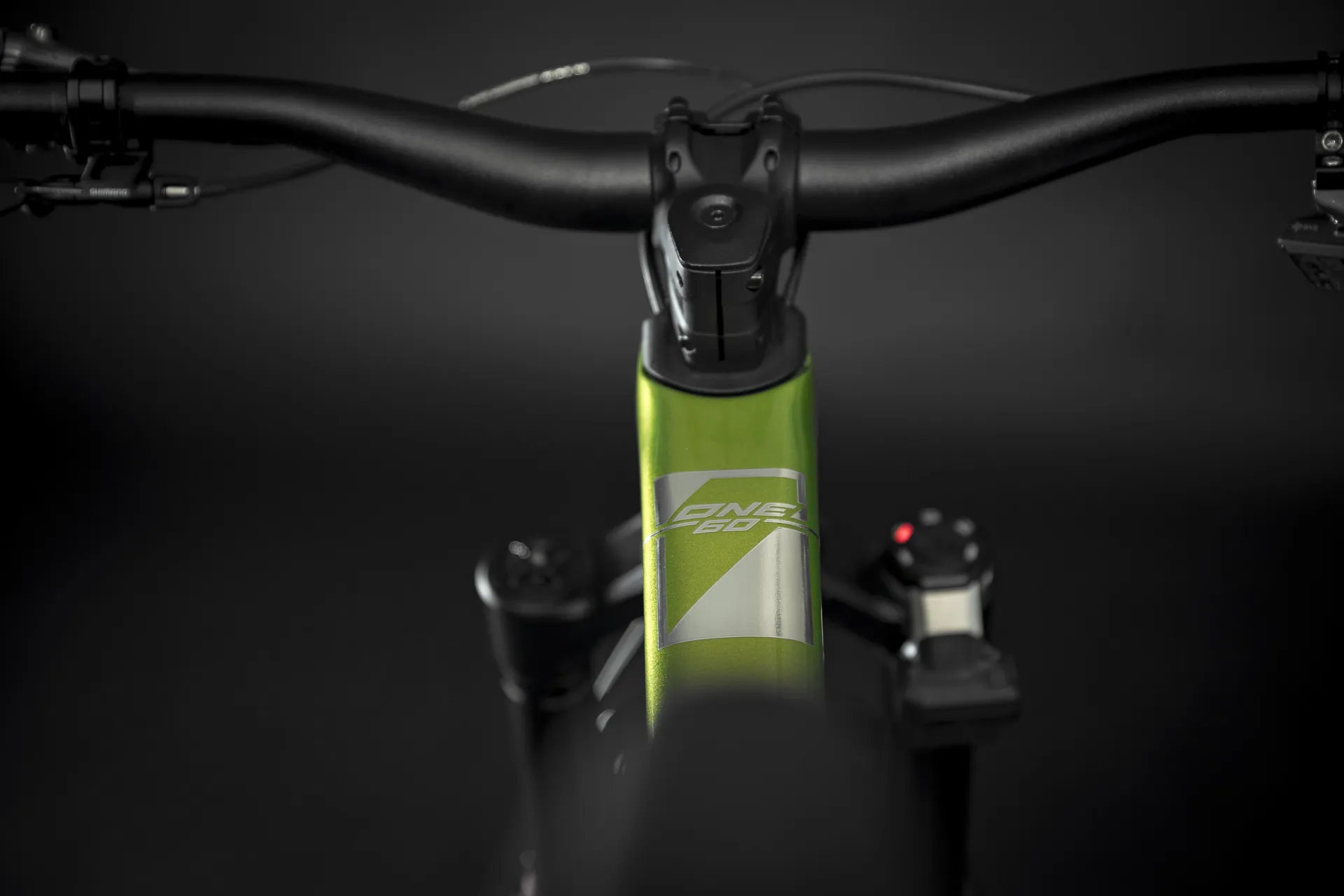

Merida Team; TR; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise
Grip
Merida Expert EC
Brake TypeHydraulic disc
Brake LeverShimano XTR
Front Brake
Shimano XTR 4 piston hydraulic disc brake caliper with Shimano RT-MT900 203mm rotor
Rear Brake
Shimano XTR 4 piston hydraulic disc brake caliper with Shimano RT-MT900 203mm rotor
Front Tyre
Maxxis Assegai; 29" x 2.5"; Kevlar bead, folding; TR DD 3C MaxxGrip
Rear Tyre
Maxxis DHR II; 27.5" x 2.4" for XS/S & M; 29" x 2.4" for L & XL; Kevlar bead, folding; TR DD 3C MaxxTerra
Wheel Size29" / 27.5"
Rim
Part of wheelset - Reynolds Black Label Enduro 289/287 I9; 28mm inner rim width; carbon; Tubeless ready (tubeless tape and valves included); Rear 27.5" for XS/S & M, 29" for L & XL; Lifetime warranty
SpokesPart of wheelset
Front Hub
Part of wheelset - Reynolds Black Label Enduro 289/287 I9; 110x15mm; Center lock
Rear Hub
Part of wheelset - Reynolds Black Label Enduro 289/287 I9; 148x12mm; Center lock; SRAM XD; With Merida Expert TR axle including removable lever, 6/4mm allen key
Speeds12
Front Derailleur
Rear Derailleur
SRAM XX Eagle Transmission AXS wireless
Shift Levers
SRAM AXS POD Ultimate and Shimano SL-MT800-IL dropper post lever
Chain
SRAM XX Eagle Transmission
Cassette
SRAM XX Eagle 10-52 teeth; 12 speed
Chainset
SRAM XX Eagle Transmission; 32 tooth chainset. 2x Chainguard. Crank length: 170mm
Bottom Bracket
SRAM DUB BSA 73mm wide
PedalsNot included
Saddle
Merida Expert SL with V-mount; including Merida minitool
Seat Post

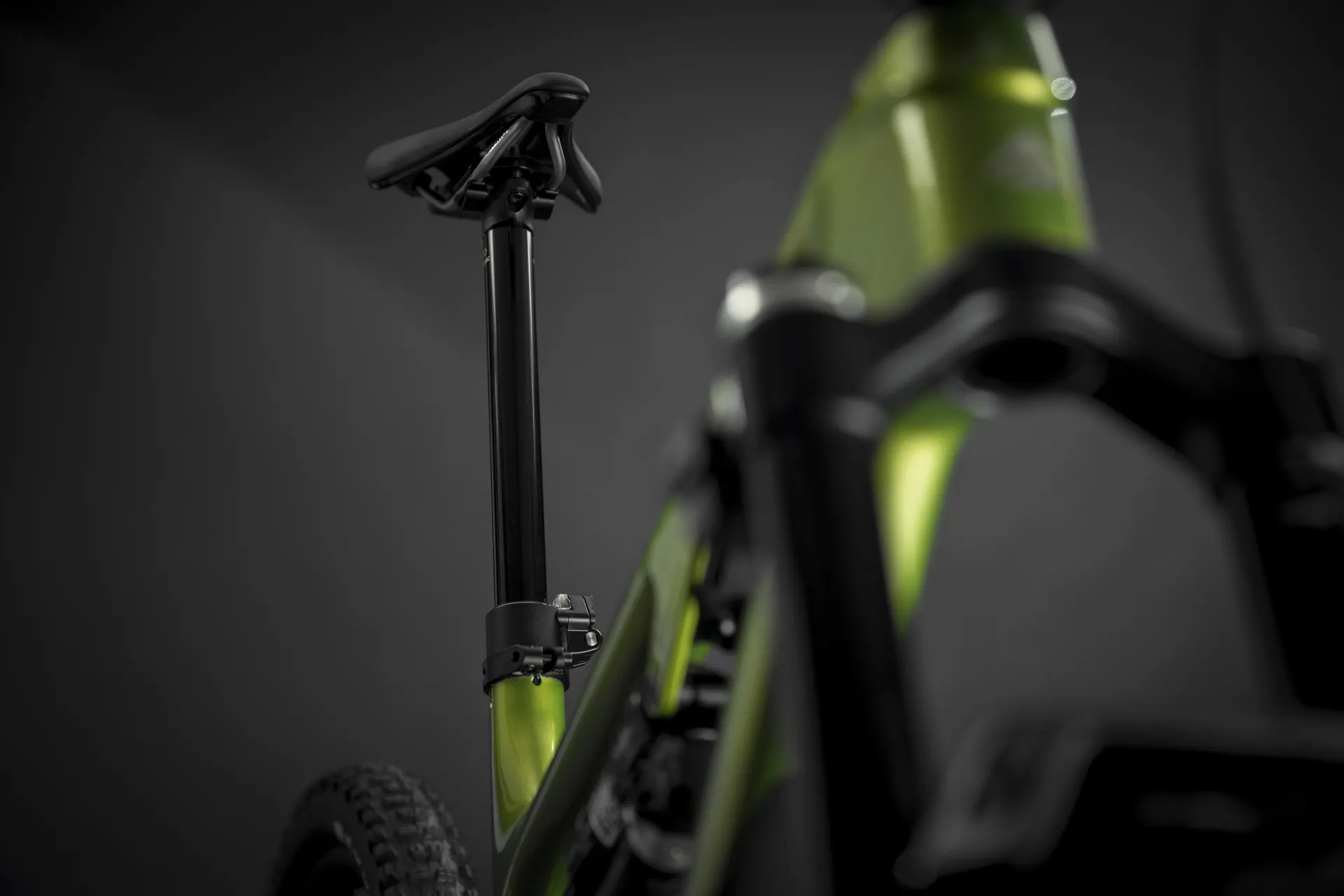

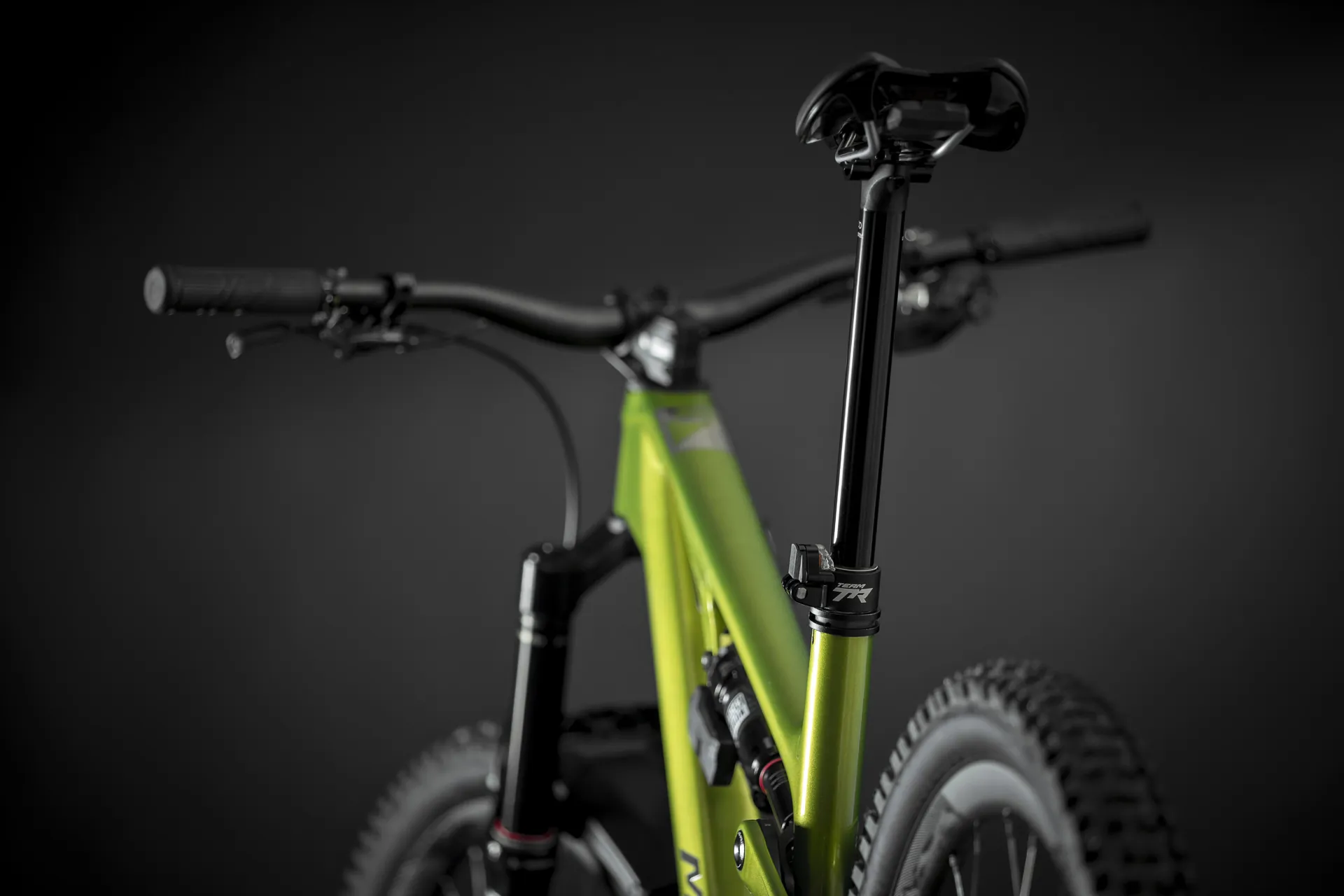

Merida Team TR; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel
Motor
Battery Capacity
eBike Display
Sizing Information



We’re all different – and many of us fall between frame sizes

We recommend you try a bike for size at your local Merida dealer (see Dealer Search)

As a rough guide…

  • Forspeed, we suggest you opt for asmallerframe size
  • If you use asuspension seatpost, we recommend deducting approx. 3cm (1 inch) from the frame size

MTB FULL SUSPENSION

FRAME SIZEBODY HEIGHT
S< 173 cm
M167 - 183 cm
L177 - 190 cm
XL> 187 cm

MTB HARDTAILS

FRAME SIZEBODY HEIGHT
XS< 163 cm
S157 - 173 cm
M167 - 183 cm
L177 - 190 cm
XL187 - 196 cm
XXL> 192 cm

ROAD RACE

FRAME SIZEBODY HEIGHT
4XS< 152 cm
3XS148 - 157 cm
XXS153 - 162 cm
XS158 - 167 cm
S163 - 172 cm
S/M168 - 177 cm
M/L173 - 182 cm
L178 - 187 cm
XL> 183 cm

GRAVEL

FRAME SIZEBODY HEIGHT
XS< 167 cm
S165 - 177 cm
M173 - 185 cm
L181 - 192 cm
XL> 188 cm

TREKKING – CROSSWAY

FRAME SIZEBODY HEIGHT
XXS< 149 cm
XS145 - 160 cm
S155 - 170 cm
M161 - 180 cm
L171 - 190 cm
XL> 185 cm

ELECTRIC MOUNTAIN BIKES

FRAME SIZEBODY HEIGHT
XS< 163 cm
S157 - 173 cm
M167 - 183 cm
L177 - 190 cm
XL> 187 cm

E-TREKKING

FRAME SIZEBODY HEIGHT
XS< 160 cm
S155 - 170 cm
M161 - 180 cm
L171 - 190 cm
XL> 185 cm

E-CITY

FRAME SIZEBODY HEIGHT
XS< 158 cm
S155 - 165 cm
M160 - 177 cm
L168 - 185 cm
XL> 180 cm
